Product Description

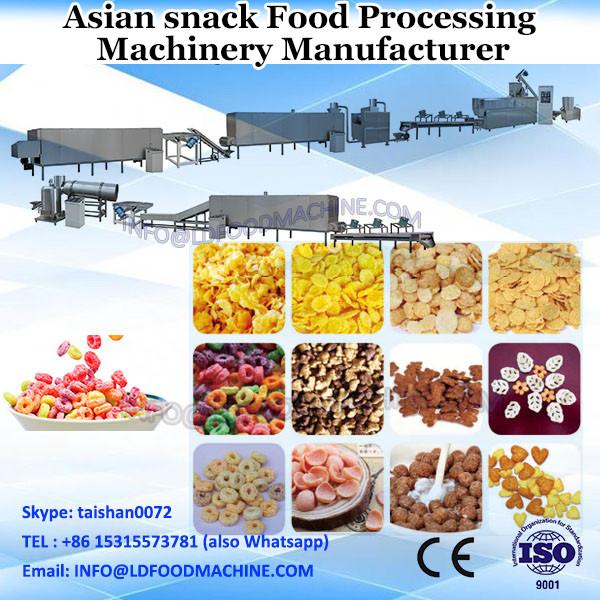

Leisure Food Snack Processing Machine

Product Description

1. Brief description:

The LRS extrusion processing line makes the material be modified by the high temperature and

high pressure with the twin screws , through mould leak the pression to produce the inflation

effection,then through mould,roast,spray the oil or flavour on the surface of food to get the final

product .

1). The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting.

And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw,

when roasting or replacing of materials.

2). Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely

3). It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel

twin screw feeding machine guarantees stable materials feeding in the whole food process.

4).Adopted the Delta inverters, ensure the extruder better running.

5). The gearbox has automatic lubrication function, with extends gear life.

6). Cutting knife fixed in the die head seat, rotary cutting by V-belt drive

2. Raw material: Adopt corn, rice powder, wheat flour, oats, barely, millet, sorghum etc as main ingredients.

3.Final producrts shape: Variety shape are available for ball, tube, stick, ring, fruit loop, star. wheel and flower and heart shape by adjusting the mould in the extruder.

4. Capacity: 100~150kg/h 200~260kg/h 400~500kg/h

5. Flow chart: Grian grinder →Mixing system→Twin screw extruder system→Drying systerm→Flavoring systerm→Packing systerm

6. China standard industrial voltage: The phase 380V/50Hz, single phase 220V/50Hz, we can make it according to customers' Local voltage acording to different countries.(400V, 415V, 440V for option)

7. Machine materials: All the machine are made by stainless steel 201, (if you have special requirement, we also have S.S304/316), this whole line is with reasonable design and with high automatic, the srew are made by alloy steel, with building block systerm structure and self-cleaning function.

8.Technical Parameters:



Leisure Food Snack Processing Machine Machine


Leisure Food Snack Processing Machine Machine


Leisure Food Snack Processing Machine Machine

Installed Capacity

150 KVA

220 KVA

280 KVA


120 KW

150 KW

190 KW


120-160 kg/h







Packaging & Shipping

The machine is possible to pack in wooden case or nuele pack after by plastic film.


1. What's the pre-sale service of your company?

Related machines’s technical parameter will be supplied to customer.
(1). According to customer’s factory size, factory layout can be provided in advance.
(2). According to customer’s material cost, general formulation can be prepared well.
(3). Special machine can be supplied as customer’s request.
(4). Professional Advice about Market, machines, processing , materials, packing can be supplied.
(5). Suggesting professional ship agent or helping book ship as customer request.

2. What's the after-sale service of your company?

(1). Allocation chart as the buyer’s request will be supplied.
(2). Operation manual will be supplied after shipment.
(3). One year warrantee, life time maintenance with cost price.

(4). Free easy broken spare parts will be sent with container .
(5). First installation can be done by engineer.

(6). Training workers in customer’s factory.

3. If machines wearing parts need changing, what should we do?

We can offer the wearing parts all the time, and offer video.

4. What's the payment terms if we want to buy the machines?

L/C, T/T 30% down payment, 70% balance before delivery.

Leisure Food Snack Processing Machine is a kind of breakfast with high nutritional value. usually use corn powder and other cereals as main raw material, through mixing, extruding, drying, baking, coating and cooling, to get crispy flakes. Leisure Food Snack Processing Machine always service as breakfast cereal mixed with milk of coffee. But Leisure Food Snack Processing Machine can also be a kind of leisure snacks. can also make other shapes of cereals such as rings, balls, chocos, curls etc. has adopted technology from America.

Leisure Food Snack Processing Machine take corn flour as main raw material,Leisure Food Snack Processing Machine's is very crispy after extruding,granulating,flaking, frying,seasoning. The outstanding characteristic of flakes is co-ntaining abundant compound carbohydrate and dietary fiber.Jinan Joysun Machinery Co., Ltd. can also add some trace elements and minerals. is very popular because of high nutritional value, delicious and convenience.
