Home >  Granola Bar Machine >  electric and hydraulic system Large Pressure manuel making block machine

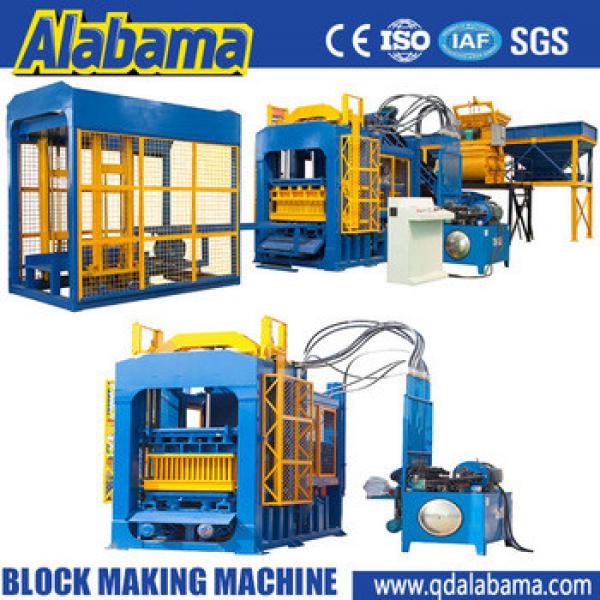

electric and hydraulic system Large Pressure manuel making block machine

electric and hydraulic system Large Pressure manuel making block machine

electric and hydraulic system Large Pressure manuel making block machine Main Technical Parameter QT10-15...
  • Negotiation | Get Latest Price
  • L:1350-4300mm/ W:1460-2300mm/ H:1800-3090mm
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 45
  • Original electric and hydraulic system Large Pressure manuel making block machine
  • ALABAMA
  • ISO 9001
  • QT Series

Product Description

electric and hydraulic system Large Pressure manuel making block machine

electric and hydraulic system Large Pressure manuel making block machine


Main Technical Parameter

QT10-15QT8-15AQT8-15B
TypeFull-automaticFull-automaticFull-automatic
HydraulicYESYESYES
Dimension of host machine3500*2300*2930mm3500*1700*2930mm

3000*2100*3090mm

Molding Area1196*880 mm936*880 mm1080*800 mm
Water Consumption10-20 Tons/day5-10 Tons/day5-10 Tons/day
Workshop260 m2260 m2260 m2
Power of Host Machine37 kw29.1 kw35.1 kw
Vaibration Force100 kn60-80 kn60-80 kn
Models of MixerJS750JS750JS750
Forming Period15-20s15-20s15-20s
Pallet Size1300*900*30mm980*900*25mm1100*730*25mm
Weight of Host Machine9.8 T8.5 T7.9 T

Theoretical Production Capacity

QT10-15
Size(L*W*H)Pcs/MouldPcs/HourPcs/8Hours
400*100*200203600-420028800-33600
400*150*200142520-294020160-23520
400*200*200101800-210014400-16800
400*250*20081440-168011520-13440
230*110*70427500-880060000-70400

Paver:200*100*60

35576050400

Paver:200*163*60

20360028800
QT8-15A
Size(L*W*H)Pcs/MouldPcs/HourPcs/8Hours
400*100*200162880-336023040-26880
400*150*200101800-210014400-16800
400*200*20081440-168011520-13440
400*250*20061080-12608640-10080
230*110*70335940-693047520-55440

Paver:200*100*60

32576046080

Paver:200*163*60

20360028800
QT8-15B
Pcs/MouldPcs/HourPcs/8Hours
400*100*20015.52790-325522320-26040
400*150*2008.51530-178512240-14280
400*200*2007.51350-157510800-12600
400*250*2006.51170-13659360-10920
230*110*70325760-672046080-53760

Paver:200*100*60

27576038880

Paver:200*163*60

20360028800

Advantage & Feature

1. Mainframe
The automatic block making machine applies the high-strength structural steel and special welding technique for its mainframe. The firmness of the mainframe allows the whole machine to come with good rigidity and vibration resistance.
2. Guide Pillar
The guide pillar of this machine applies the ultra-strong special steel. By virtue of the chromate plated treatment, it perfectly resists torsion and abrasion. Additionally, the four guide pillars together with the ultra-long guide bearing make the pressure head and mould move accurately. This moving system adopts the special device that is good for lubrication, thus avoiding abrasion.
3. Material System
The crane of the material machine is controlled by the hydraulic system. That its hopper is connected to the crane by the rubber spring, can offer favourable damping effect while preventing the vibration compaction of the remained materials. In the system, the hopper is equipped with a door which can help realize the uniform material distribution.
4. Material Distributing System

In this system, the material storage and distribution are independent from each other. The material receiving in the material box is accurately controlled. Under the function of the powerful centrifugal force, the material is speedily and evenly distributed.

Exhibition of Machine

About Us
Why choose us

Our Team

electric and hydraulic system Large Pressure manuel making block machine

Videos of Machine
Link 1 (QT5-20): http://youtu.be/jez5lnOjXyg
Link 2 (QT4-15): http://youtu.be/ISWIJBauRDs
Link 3 (QTM6-25): http://youtu.be/CYu3Tr6738M
Link 4 (QT6-15): http://youtu.be/JGg6Pw1Nhs4
Link 5 (QT10-15): http://youtu.be/-ZxC7VfWhTg
Link 6 (QM2-40): http://youtu.be/ggArYdFZk1A
Link 7 (QMR2-45): http://youtu.be/usAu2pZjSMc
Link 8 (QMJ4-45): http://youtu.be/JCmEwPexD6k
Related Products

1.Full-Automatic

2.Automatic

3.Manual

4.Hydraulic

5.Movable

6.AAC Production Line


If needing our block machine,pls contact us anytime!

electric and hydraulic system Large Pressure manuel making block machine

electric and hydraulic system Large Pressure manuel making block machine is suitable for foods such as casual products, soy products, meat, and aquatic products. is widely used in large, medium and small-sized fried food manufacturers, school canteens, and large-scale restaurants.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integrating R&D, manufacturing, sales, and after-sales services.
The main production of food frying equipment, cleaning equipment, blanching cooking equipment, pasteurization line, drying machine, vacuum packaging machines and other food processing equipment.
electric and hydraulic system Large Pressure manuel making block machine is the essence of absorbing the same kind of equipment, retaining the advantages of large-scale equipment for enrichment, and referencing the user's feedback information throughout the country for design and development.
has the characteristics of low one-time investment, low energy consumption, multiple functions, small size, high profit, convenient use and maintenance. The full set of equipment consists of peeling, slicing (strips), fluttering, dehydration, oil-water mixed frying, degreasing, seasoning, packaging and auxiliary equipment.
