Product Description

1000kg/h capacity peanut shell hammer mill

l Feature:

Low-temperature, low-noise, high-efficiency. It can be used as multifunctional crusher, which is equipped with the dust absorption, no power

pollution.

l Application:

The machine is used for crushing smaller diameter raw materials, which is no more than 50mm such as

corn straw, tree branches and so on. After crushing, the diameter of final products could be 3-5mm.

l Equipment material quality:

High carbon alloy steel blade, high speed wind suction, pulverizing system, stable performance, strong and

durable, crushing effect is good.

l Operating Principle:

Hammer crusher included material board, crushing chamber, feeding device, etc. There are runner rotor in

the crushing chamber, and the runner rotor consists of the disc and activities hammer.Sieve and tooth plate

mill are main working parts. During the working processing, processed materials falling into the crushing

chamber from material slide, repeated shocks by high speed rotating hammer, friction and collision on the

tooth plate, so it was gradually pieces to the granularity of the leaking through the sieve pore. Drip feed by

conveying fan, transporting pipe to gather material cylinder, then through separation within the poly cylinder,

powder by below discharge bag, air is being exhausted from above.

l Main technical data:

TECHNICAL PARAMETER

9FQ-42

Capacity

(kg/h )

800-1000

Size

(mm)

900*850*850

Speed of Main shaft

(r/min)

3300

Diameter of rotor

(mm)

420

Weight

kg

210

Motor Power

kw

10-11

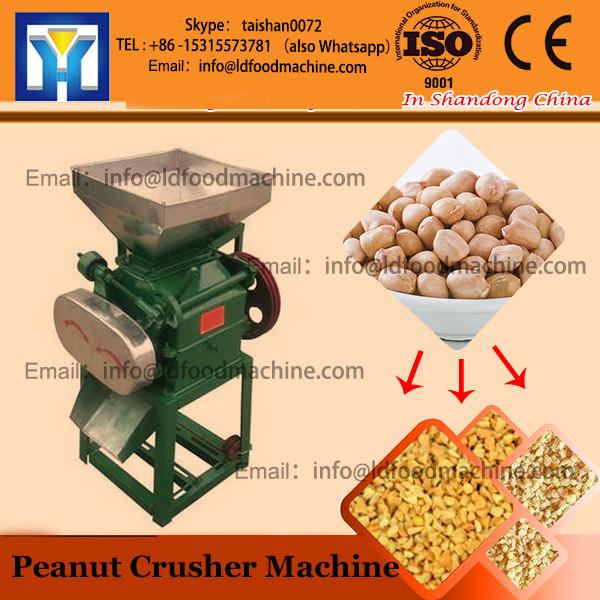

The Picture of our hammer mill:

Our ISO9001 Certificate:

If we can meet your needs, please contact me freely. I will reply you within 6 hours.
