poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill
Product Description
Introduction
The whole production line including Crusher-Mixer-Fish feed pellet machine-Dryer-Cooloer-Oil spray machine-Packing machine.
This line is widely used for process all kinds of grains into high-grade aquatic floating or sinking feed pellet for fish,catfish,shrimps,crab.
It also can make pet feed for dog,cat etc with different shape and chicken feed.
Wet type machine technical specifications
Model | Capacity | Screw diamater | Main power | Feeding power | Cutting power | Conditioner power |
DSP60 | 180-200kg/h | 60mm | 15kw | 0.75kw | 0.75kw | 0.37kw |
DSP70 | 250-300kg/h | 70mm | 18.5kw | 0.75kw | 0.75kw | 1.5kw |
DSP80 | 350-400kg/h | 80mm | 22kw | 1.1kw | 0.75kw | 1.5kw |
DSP90 | 500-600kg/h | 90mm | 37kw | 1.1kw | 1.1kw | 2.2kw |
DSP120 | 700-800kg/h | 120mm | 55kw | 1.1kw | 1.1kw | 2.2kw |
DSP135 | 1000-1500kg/h | 135mm | 75kw | 1.5kw | 2.2kw | 2.2kw |
DSP160 | 1800-2500kg/h | 155mm | 90kw | 2.2kw | 2.2kw | 3.5kw |
DSP200 | 3000-4000kg/h | 195mm | 132kw | 2.2kw | 3.0kw | 4.5kw |
Production line procedure
Name | Introduction | Picture |

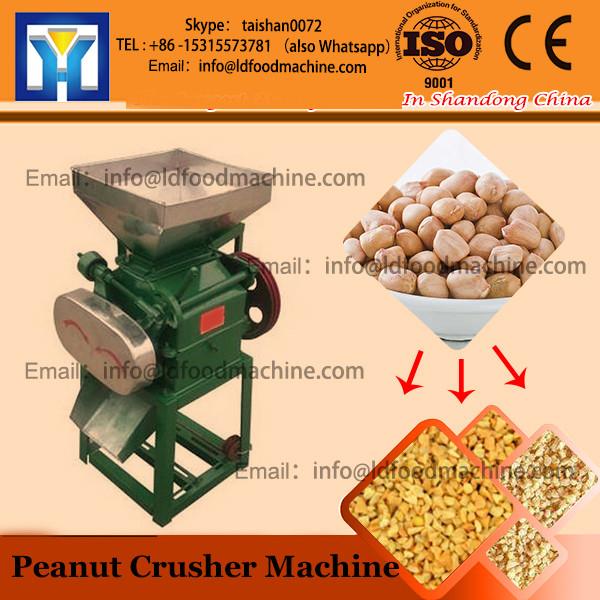

Crusher | The crusher machine is mainly used for grinding the raw materials like soybean,maize etc. |
![]() |
Mixer | The mixer machine is mainly be used to mix all kinds of raw material evenly, such as wheat meal, corn meal,sorghum meal,bone meal,meat meal and so on,it also can mix other micro- ingredients such as vitamins, amino acids, trace elements and other feed additives. | ![]() |
Fish feed pellet machine (Dry type or wet type) |
The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab. |
![]() |
Dryer | The dryer can lower the temperature and moisture content of the feed pellet. |
![]() |
Cooler | The cooler is adopting the counter-flow cooling principle,it can reduce the high temperature and moisture content,for large capacity fish feed production line,this is an necessary machine.For small capacity,the pellet can cool naturally. |
![]() |
Oil spray machine | The oil spray machine is use to spray oil onto the surface of the feed pellet.First the smell can attract the fish to eat the pellet.Second it is better for storage. |
![]() |
Packing machine | The packing machine can packing the finished feed pellet into bags,and 1-50kg per bag,thus it is more convenient for storage and transport.The process including filling,weighing,sealing. |
![]() |
Final Feed Pellet
Fish feed ,chicken feed:Round Shape ,diameter:0.9-15mm
Pet feed: Different shapes,diameter 6-8mm
Packaging & Shipping
poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill
Packing: Export standard wooden case or Whole contaciner
Delivery time:Withing 15-40 working days.
Shipping:By sea
Our Services
poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill
1. The warranty time is one year, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. Engineers can go abroad to guide the installation and traing.
Established in 1984 in China, we are factory of fish feed extruder with 34 years of developing and manufacturingexperience; Our main product covering Dry/Wet type fish feed production line, diesel engine fish feed extruder,corn/soyabean extrusion line, feather meal extrusion line, poultry feed production line, home use portable feed pellet mill..... By now, we have had a lot plant well set in Russia, Bangladesh, Nigeria, Zimbabwe, South Africa, Ivory Coast....etc, Excellent quality and first-rate after sale service made us survive. Welcome your inquiries and visiting to our workshop at any time!
FAQ
poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill
Q: What’s the difference between dry type extruder and wet type extruder?
A: The difference is the wet type need a steam boiler while the dry type doesn’t. The dry type is cheaper than wet type, and the feed pellets made by wet type extruder is much smooth and with better quality.
Q: How long does the floating fish pellet float on the water surface?
A: The feed pellets can float on the water surface for over 20 hours.
Q: Does the fish pellet machine can only make feed pellets for fish?
A: No. It’s not only can make high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc., but also can make pellets for chicken,cat, dog, etc.
Q: Do you supply the whole fish feed production line?
A: Yes. We can supply a fish feed product line include crusher, mixer, fish feed pellet machine, feed pellet dryer, fish feed pellet cooler, oil spray machine and packing machine. The capacity is from 60-5000kg/h.
Q: Is there a formula of making fish feed pellet?
A: We can offer free formula to our customers.
1. Raw materials of : Potato Starch, Corn Starch , Wheat Flour, Cassava Starch etc.
2. Products made by poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill : By changing the shaping machine, can produce , waved chips, potato chips, shrimp chips and so on. screw,shell, bulges extruded pellet chips processing line,fried snacks food machine
3. Capacity of poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill : 80-100kg/h,250-260kg/h. screw,shell, bulges extruded pellet chips processing line,fried snacks food
4. Flow Chart of : Mixing —Extrusion —Shaping —Drying —Frying —Flavoring
5. Voltage of poultry feed pellet making machine/animal feed pellet machine production line/floating fish feed pellet mill: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries. Fried snacks food machine
6. Machines Materials of : All the machines are made by food grade stainless steel.
