It is widely used for making cereal bar, rice candy ,peanut candy etc.
Main equipment info
General working procedure(The equipement may different as per the actual finished product):
Puffing granulator→Sugar boiled pot→Mixing machine→Ascension conveyor→
Automatic cutting and forming machine→ Cooling line → Packing machine
This machine adopts screw extrusion. A high degree of automation. Can directly into shape, the expansion of sesame, mung bean, Fried peanut shape, etc
This machine is easy to use, simple operation.
2.Purpose: It can puffing to sesame shapes, bean shapes.parched rice shape,peanut shape .
II.Sugar boiled pot(Electric heating)
With a heated area, high thermal efficiency, uniform heating, the liquid material boiling
Time is short, easy to control the heating temperature and other characteristics.
2.Purpose: Sugar boiled pot can be steamed, boiled, extraction,
concentration of Chinese medicine, can also be used to make honey pill in practice.
Applies to hospitals, preparation rooms, laboratories, research institutes, can also be
used in confectionery, beverages, canned food processing units.
|Power||380V 50HZ 9-24KW|
III.Mixing machine :
This device fitted with a thermostat, the temperature is easy to control
Positive and negative mixing
2. Technical Parameter :
Conveyor the material to the automatic cutting machine.
The stent and surface is stainless steel
The conveyor belt material is PVC, food grade.
Stainless steel material
Match food standard

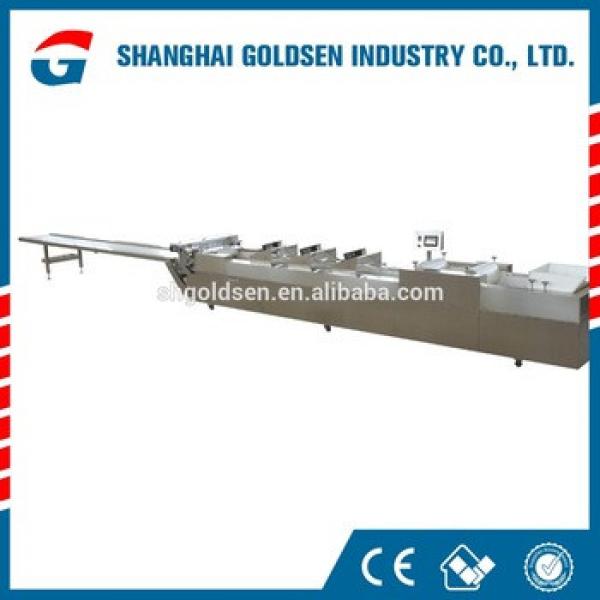

V.Automatic forming cutting machine
1.The stirring, leveling, cutting three process integrated together, without human connection among them, has realized the real automatic and intelligent operation. Improve the production efficiency, save the human cost.
2.Imitate human manual cutting principle, adopts advanced frequency control of motor speed, different products can meet your needs.
3. Has many reforming flat structure, suppression smooth, uniform thickness. Cutting speed automatic control, automatic feeding, horizontal, vertical automatic feed cutting food, square size can be customized.
4. PLCintelligent computer controlled,convenient and efficient,easy to operation.
5. This machine working continuous,no-stop slitting and cutting,improving produce efficiency,the output can reach 2000pcs/min.
6. High speed head of slitting can adjust length freedom,have no length and short bars and incline phenomenon.
7. Auxiliary products uniformity,use no enquidistance packing auger,put all auxiliary material uniformity products.
8. Surface pressed light,adjust thickness and thin convenience.
9. The quality of all machines's material very good,reasonable design.
Technical Paramater :
Range of product
11800*1000*1300mmDimension can custom-made according to requirement
Forming and cutting part length5800mm;Cooling conveyer length6000mm
Packaging & Shipping
High capacity cereal bar making machine,cereal bar production line is suitable for foods such as casual products, soy products, meat, and aquatic products. is widely used in large, medium and small-sized fried food manufacturers, school canteens, and large-scale restaurants.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integrating R&D, manufacturing, sales, and after-sales services.
The main production of food frying equipment, cleaning equipment, blanching cooking equipment, pasteurization line, drying machine, vacuum packaging machines and other food processing equipment.
High capacity cereal bar making machine,cereal bar production line is the essence of absorbing the same kind of equipment, retaining the advantages of large-scale equipment for enrichment, and referencing the user's feedback information throughout the country for design and development.
has the characteristics of low one-time investment, low energy consumption, multiple functions, small size, high profit, convenient use and maintenance. The full set of equipment consists of peeling, slicing (strips), fluttering, dehydration, oil-water mixed frying, degreasing, seasoning, packaging and auxiliary equipment.
