angled chocolate bar granola bar packaging machine

angled chocolate bar granola bar packaging machine

angled chocolate bar granola bar packaging machine  Product Description PRODUCT INFORMATION Model No 350W 450W 600W Bag Length...
  • Negotiation | Get Latest Price
  • L3670*H820H1410
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 169
  • Original angled chocolate bar granola bar packaging machine
  • Headly
  • CE,ISO
  • HDL-350W

Product Description

angled chocolate bar granola bar packaging machine Product Description

PRODUCT INFORMATION
Model No350W450W600W
Bag Length (Mm)110-330120-450120-450
Bag Width (Mm)30-13050-16050-200
Produce Height(Mm)10-6010-8010-80
Film Width(Mm)Max.350Max.450Max.600
Power22V.50/60Hz.2.4Kw22V.50/60Hz.3.2Kw22V.50/60Hz.3.6Kw
Machine Size (Mm)L3670*H820H1410L4380*H870H1500L4380*H970H1500
Machine Weight(Kg)7509001100
Machine Speed30-12020-80
Film Roll DiameterMax.320
Packing FilmAny Heat Sealable Laminated Roll
Machine MotionContinuous
Machine Control ThroughPANASONIC PLC
Product ApplicationPackaging Regular Objects:Biscuit ,Pies,Plates,Etc
Packing Film PullingThrough Electromagnetic Clutch And Brake
Contact PartsFood Grade Stainless Ss 304
Sealing TypePillow Bag
Main MotorPanasonic
Temperature ControllerPid Based
Machine FeaturesDual Servo Motors,No Empty Bag Packing,Recoprocating Type Sealing Device
LanguageEnglish+Arabic+Any
AdditionalToolbox+Operation Instruction
Optional FeaturesPunching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device

PRODUCT DISPLAY Customized Service

Customized Service

Kindly Reminder:

Please let us know the follow packing details when you offer, so that we can check if this model is suitable for your case. Thank you in advance.

  1. Product details
  2. Bag width, bag length (similar picture)
  3. Bag shape
  4. Packing film material
  5. Machine frame

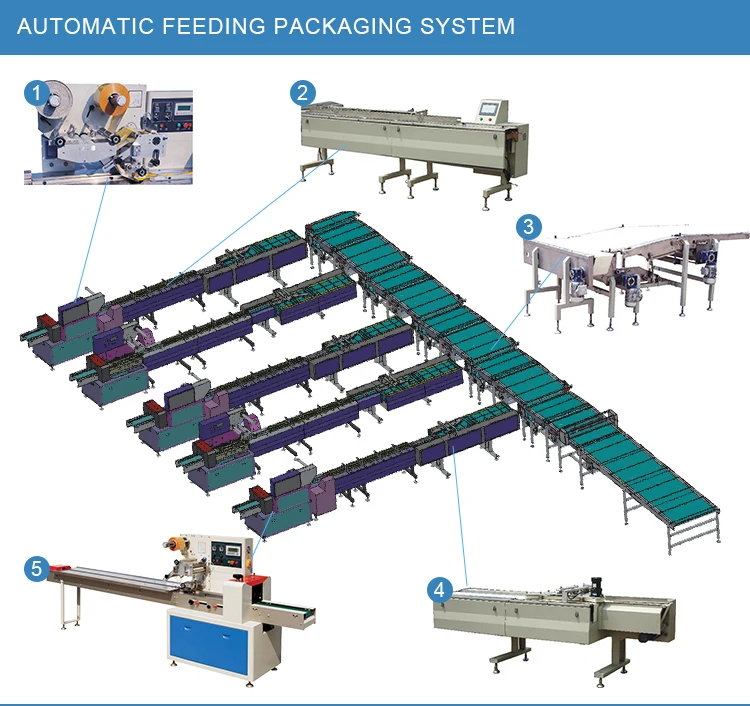

1.Automatic packing film mechanism
2.Positioning feeding mechanism
3.Distributing mechanism
4.Arrangement mechanism
5.Packing systems

The finished product is shown as the figure above. A part of the components are customizable and you can use them to assemble the machine you need.
Optional Part:
Air Filling Device
Angle Folding Device
Hold-Punching Device
Link Bag Device
Full Automatic Feeding Packaging Line
Product Advantage

PRODUCT ADVANTAGE
1.Efficient: to finish the production, sealing, packaging and date printing in one time.
2.Intelligent: automatic stop function, unsticky and not wasting the films.
3.Convenient: labor-saving, low loss, easy to operate and maintain.
CORE ADVANTAGE

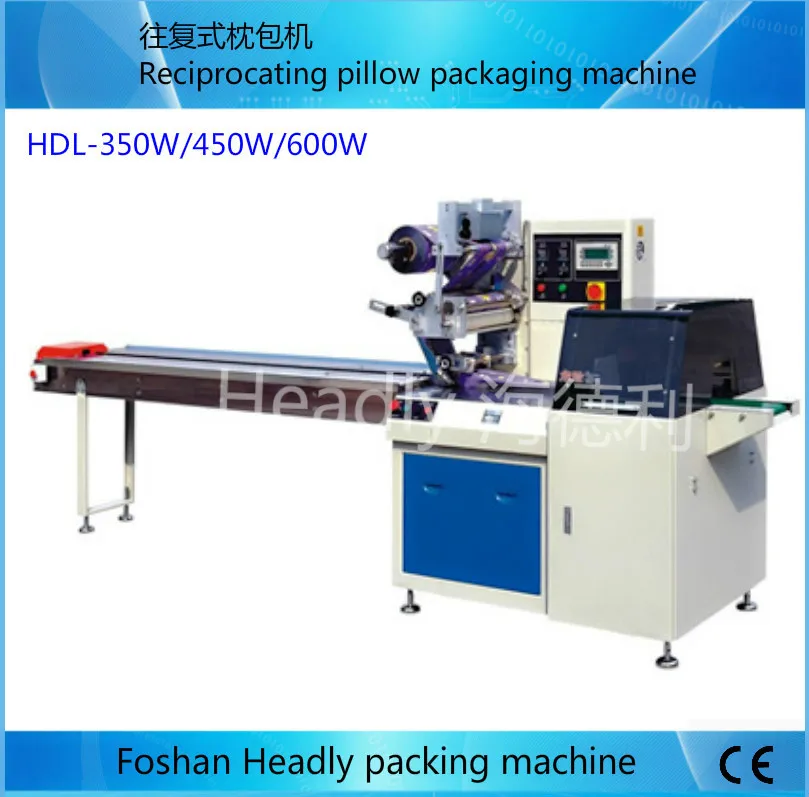

Pillow Packaging Machine

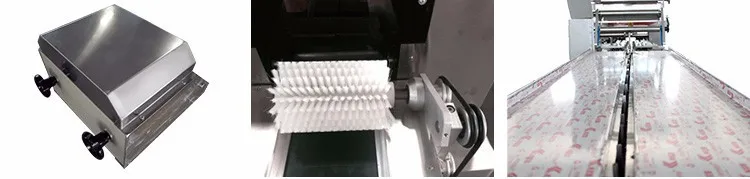

Stainless steel Auxiliary discharge device Stainless steel contact part
SPARE PARTS
Spare parts Brand
Terminals Terminals for Wade Miller
Display Screen Display Screen for HITECH
Magic Eye Magic Eye for Shanghai Ya
Temperature Control List Temperature Control List for Shanghai Yatai
Pushbutton Switch Pushbutton Switch for Schneider
Power Power for Taiwan Ming Wei
Breaker Breaker for MUNLAN
Two Wire Switch Two Wire Switch for Schneider
Touch screen Touch screen for Taiwan WEINVIEW
HOT SALES & APPLICATION

>" href="http://www.alibaba.com/product-detail/Foshan-Headly-plastic-packaging-machine-nougat_60256122880.html?spm=a2700.7724838.35.1.fjiSkH" target="_blank">1.HDL-250B >>

>" href="http://www.alibaba.com/product-detail/foshan-Headly-automatic-small-food-wafer_60242127875.html?spm=a2700.7724838.35.1.Ih0H4T" target="_blank">2.HDL-450DT >>

>" href="http://www.alibaba.com/product-detail/detergent-washing-powder-packaging-machine_60275551931.html?spm=a2700.7724838.35.1.CucT64" target="_blank">3.HDL-520F >>

250 grams-10kg
powder packaging

machine

>" href="http://www.alibaba.com/product-detail/Headly-automatic-counting-and-weighing-machine_60276301217.html?spm=a2700.7724838.35.9.SaNCn7" target="_blank">4.HDL-420D >>

>" href="http://www.alibaba.com/product-detail/Wholesale-Small-Vacuum-Food-Packing-Machine_60291956358.html?spm=a2700.7724838.35.1.bAotfp" target="_blank"> 5.HDL-160A >>

>" href="http://www.alibaba.com/product-detail/Headly-automatic-weighing-50g-100g-200g_60273683986.html?spm=a2700.7724838.35.1.mYznlp" target="_blank">6.HDL-160F >>

1-250 grams powder

packaging machine

  • Widely used in food, pharmaceuticals, daily necessities, chemicals, toys and hardware accessories, etc.
  • Pillow packaging machine: for the packaging of snacks like cookies, snow cakes and custard pie, etc.; also for industrial spare parts, trays and other types of goods in regular packaging.

  • Upright packaging machine: can pack different kinds of materials.

>>" href="http://hdlpack.en.alibaba.com/contactinfo.html" target="_blank">CONTACT >>>

Certifications

CERTIFICATE
  • Headly has been made so far the EU "CE" certification and ISO 9001 international quality management system certification, Headly products sold in Europe, Asia, South America and the Middle East Africa, dozens of countries around the world and area, and strong support from the customers.
PRODUCTION & PACKAGING Company Information

Foshan Headly Packaging Machinery Co., Ltd. has built up since 2002. Our range consists of horizontal packaging machine, vertical packaging machine, automatic feed packing line, food production equipment and many more products. Headly has the EU "CE" certification and ISO 9001 certification. Customized service accepted.We provide suggestive measures to customers for helping them in choosing the appropriate product as per application needs.

FACTORY EXHIBITION CONTACT US
TEL:757-8665 5360 MOBILE/whatssapp/wechat:18825435931
E-mail:berry@ hdlpack.com
FAX:757-8665 5360

ADD:No. 5 Lianpin Road, Yinchong Industrial

Park, Hexi Avenue, Yanbu Street,

Nanhai District, Foshan City,

Guangdong, China

E-mail:berry@ hdlpack.com

http://www.hdlpack.com

FAQ

FAQQ: Why choose us?

A 1.More than ten years of production experience, let us pay more attention to product detail. 2.Materia selectionl, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.

3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the program are given.

Q:I have never use this kind of packaging machie,how to control?

A 1.Each machine we are accompanied by the relevant operating instructions.

2.Our engineers can operate through a video demonstration.

3.We can send engineers to the scene teaching.

Q:How to choose a best fit packaging machine?

A 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.

2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.

Q:What makes us outstanding from peers?

A 1.A most strict QC standard in the industry is applied.

2.CE and IOS certificate.

3.High productivity with advanced machines.

4.A wide selection of styles, and product types.

BACK TO HOME

angled chocolate bar granola bar packaging machine is suitable for foods such as casual products, soy products, meat, and aquatic products. is widely used in large, medium and small-sized fried food manufacturers, school canteens, and large-scale restaurants.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integrating R&D, manufacturing, sales, and after-sales services.
The main production of food frying equipment, cleaning equipment, blanching cooking equipment, pasteurization line, drying machine, vacuum packaging machines and other food processing equipment.
angled chocolate bar granola bar packaging machine is the essence of absorbing the same kind of equipment, retaining the advantages of large-scale equipment for enrichment, and referencing the user's feedback information throughout the country for design and development.
has the characteristics of low one-time investment, low energy consumption, multiple functions, small size, high profit, convenient use and maintenance. The full set of equipment consists of peeling, slicing (strips), fluttering, dehydration, oil-water mixed frying, degreasing, seasoning, packaging and auxiliary equipment.
