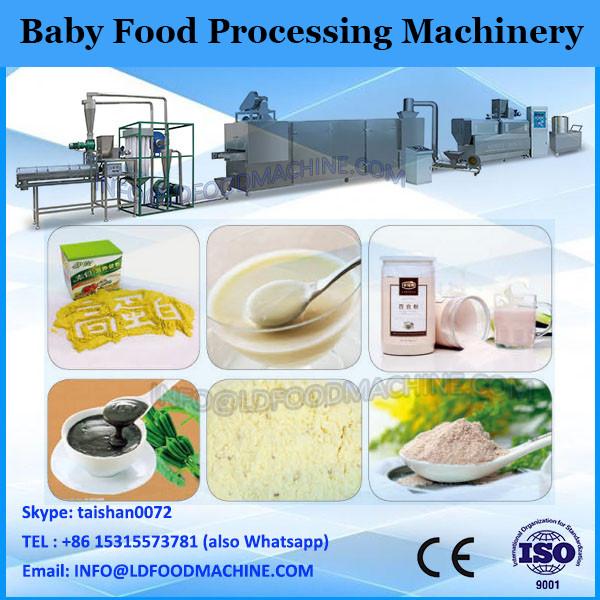

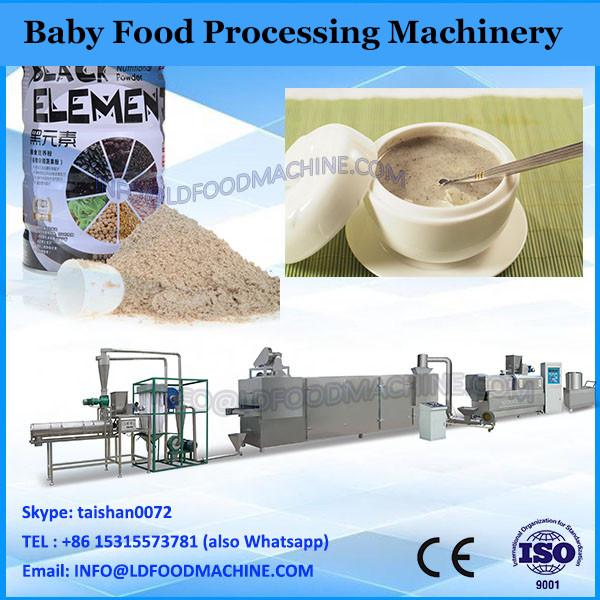

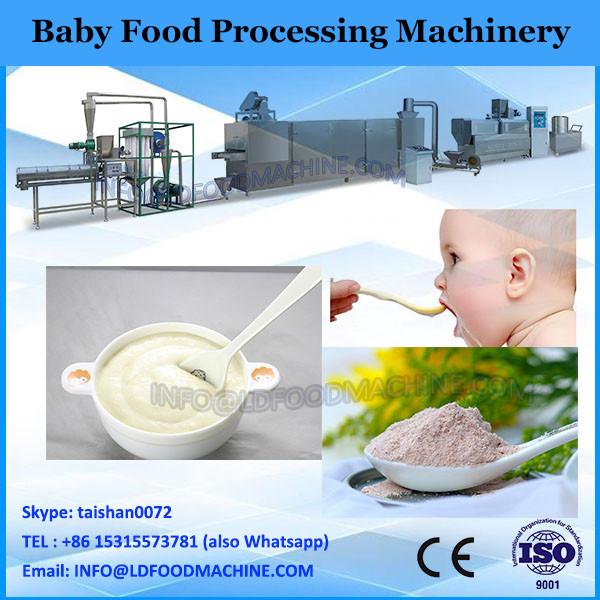

baby food extruder machine/nutritional powder processing line

can automatically finish raw materials preparation, extrusion, shaping, cutting, drying and flavoring at a time.baby food extruder machine/nutritional powder processing line...
  • INFO@LDFOODMACHINE.COM | Get Latest Price
  • 22000x1500x3200mm
  • Check with us
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • Contact with us
  • China
  • Baby Food Processing Machinery
  • CE ISO
  • Baby Food Processing Machinery

Product Description

can automatically finish raw materials preparation, extrusion, shaping, cutting, drying and flavoring at a time.baby food extruder machine/nutritional powder processing line has the advantages of more machines choice, flexible and diverse configurations, wide range of raw materials application, numerous in products variety and easy opration. baby food extruder machine/nutritional powder processing line can make the puffed snacks, corn bars, corn sticks and so on. After being puffed by , the products are crispy, easy to digest and unique taste. They are the perfect leisure food for baby food extruder machine/nutritional powder processing line consumers.

of baby food extruder machine/nutritional powder processing line comprises of U-shape barrel,transmisstion parts and ribbon agitating blades usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center of baby food extruder machine/nutritional powder processing line to sides to form convection mix.baby food extruder machine/nutritional powder processing line has a very good effect for mixing spice or dry powder with liquid.

comes from defatted soy flour, which is a by-product of soybean oil, so it is plentiful in supply. baby food extruder machine/nutritional powder processing line is also quick to cook and a great source of vegetable protein without all the fat.baby food extruder machine/nutritional powder processing line uses the newest production equipments. are researched and developed according to the market demand and basing on the advanced equipments. Jinan Joysun Machinery Co., Ltd. baby food extruder machine/nutritional powder processing line has become the serialization and many kinds of collocations can meet the different customer's needs.

Product Descriptionwidth: 750px; height: 400px; margin-left: 0px; margin-top: 0px;

width: 750px; height: 400px; margin-left: 0px; margin-top: 0px;

1.The parameter of the baby food extruder machine/nutritional powder processing line :

Model SLG65 SLG70 SLG85
Instanll Power 65KW 110KW 190KW
Consumption Power 75KW 77KW 133KW
Output 120-150KG/H 220-260KG/H 500-600KG/H
Dimension 19000x1300x2200M 22000x1300x2200M 30000x1300x2500M
2.The brief introduction of baby food extruder machine/nutritional powder processing line :

Baby food machinery is used to produce infant baby food and some other instant flour products. The raw material is put in the mixer then mixed ingredients are fed into extruder feeder. The extruder is fitted with: special cylindrical holding silo; vibratory doser with hopper to feed the extruding screw; extrusion mechanism and cutting; independent electric panel.
After the extrusion the product is conveyed till the continuous rotary drier through a pneumatic conveyor. The continuous rotary drier has a heat exchanger with gas burner that allows a better heating of the product and it is economically viable owing the low cost of electric power. Case the client prefers we have the electric drier also.

3.Flow chart of High output best price baby food processing line/machine:
Mixing system---Extrusion system----Drying system----Grinding system.
4. Power: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to users' Local power supply.
5. Raw materials for Baby food processing line:dopts cereals flour (corn, wheat, rice, oat, soy, etc).

Jinan Saibainuo Machinery Co., Ltd, professional food machine manufacturer in China since 2004, quality is our culture, so with us your money in safe, your business in safe.

width: 750px; height: 617.884px; margin-left: 0px; margin-top: 0px; width: 750px; height: 522px; margin-left: 0px; margin-top: 0px;

Our baby food production line in our factory.

width: 750px; height: 400px; margin-left: 0px; margin-top: 0px;

The inside structure of twin screw extruder.

width: 750px; height: 417.75px; margin-left: 0px; margin-top: 0px;

Our multi-layer dryer.

Detailed Imageswidth: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: high speed mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: screw conveyor

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: twin screw extruder

Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:12kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the
hardness is 60HRC..
The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.

Name: multi-layer dryer

Dimension(m): 5.4×1.3×1.8
Heating Power:27kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 255.063px; margin-left: 0px; margin-top: 0px;

Name: milling machine

Dimension(m): 1.1×0.6×0.5
Motor Power: 11KW
Functions:
Mill the puffed product into powder
Features:
Low energy-consumption, high efficiency.
Stainless Steel

Certificationswidth: 245px; height: 320px; margin-left: 0px; margin-top: 0px; width: 245px; height: 320px; margin-left: 0px; margin-top: 0px; width: 245px; height: 320px; margin-left: 0px; margin-top: 0px;Our Servicewidth: 750px; height: 765.152px; margin-left: 0px; margin-top: 0px;

Pre-sale service:
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.

Packing & Deliverywidth: 750px; height: 798.387096774194px; margin-left: 0px; margin-top: 0px;

Packaging & Shipping:

1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
