have wide range of equipment sizes to suit your New design plant baby food processing line/machine space and its lab item sterilization and decontamination needs of BB.Find here manufacturers, suppliers & exporters in China,Get contact details & address of companies manufacturing and supplying New design plant baby food processing line/machine. services and products used in hospitals, laboratories, scientific institutes and pharmaceutical industry.
, Wholesale Various High Quality New design plant baby food processing line/machine Products from Global Peanut Shelling Machine Suppliers and Factory,Importer,Exporter.This small New design plant baby food processing line/machine mainly contains 3 parts, the destoner for peanuts, conveyer and the groundnut sheller. New design plant baby food processing line/machine features compact structure, stable operation and less noise. One of the advantages of is that the conveyor part is effective and economical.
Find here New design plant baby food processing line/machine manufacturers, suppliers & exporters in China. Get contact details & address of manufacturing and supplying New design plant baby food processing line/machine, , Pellet Frying Line across Shandong,China.
Features: adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying.By choosing different dies, you can make different shapes food such as shell, screw, square tube, round tube, lotus root slices etc.
Product Description1.The brief introduction of New design plant baby food processing line/machine:
Baby food machinery is used to produce infant baby food and some other instant flour products. The raw material is put in the mixer then mixed ingredients are fed into extruder feeder. The extruder is fitted with: special cylindrical holding silo; vibratory doser with hopper to feed the extruding screw; extrusion mechanism and cutting; independent electric panel.
After the extrusion the product is conveyed till the continuous rotary drier through a pneumatic conveyor. The continuous rotary drier has a heat exchanger with gas burner that allows a better heating of the product and it is economically viable owing the low cost of electric power. Case the client prefers we have the electric drier also.
2.Flow chart of baby food processing line/machine:
Mixing system---Extrusion system----Drying system----Grinding system.
3. Power: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to users' Local power supply.
4. Raw materials for Baby food processing line:dopts cereals flour (corn, wheat, rice, oat, soy, etc).
5.The parameter of the New design plant baby food processing line/machine:
Jinan Saibainuo Machinery Co., Ltd, professional food machine manufacturer in China since 2004, quality is our culture, so with us your money in safe, your business in safe.

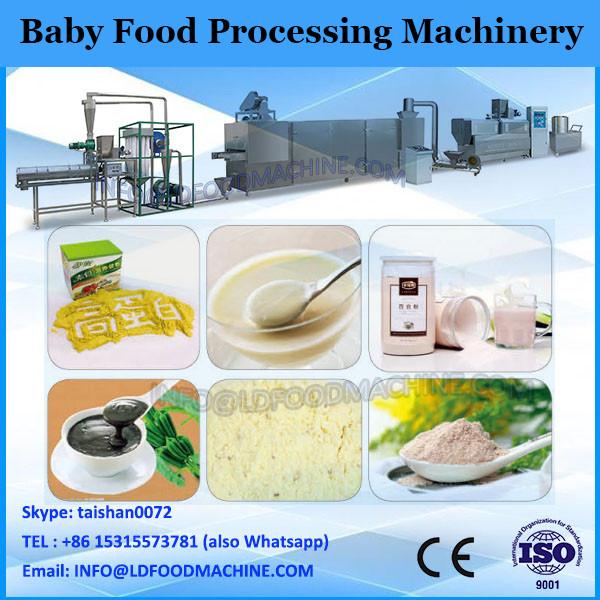

Our baby food production line in our factory.
The inside structure of twin screw extruder.
Our multi-layer dryer.Detailed Images
Motor Power: 4KW
Throughput: 30kg per loading (5-6 minutes per loading)
Mix powder raw material with water
1. stainless steel material
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
stainless steel material.
Total power: 37kw
Main Motor Power:22KW
Cutting motor: 1.5kw
Extruder diameter:Φ65 mm
Extrude and cook raw material into different size and shapes
Screw material is 38CrMoAl with nitriding treatment, the
hardness is 60HRC..
The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.
There are three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.
Motor Power: 11KW
Mill the puffed product into powder
Low energy-consumption, high efficiency.
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
Packaging & Shipping:
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
