Home >  Baby Food Processing Machinery >  Chinese Multifunctional baby food making machine
Chinese Multifunctional baby food making machine Chinese Multifunctional baby food making machine Chinese Multifunctional baby food making machine

Chinese Multifunctional baby food making machine

have wide range of equipment sizes to suit your Chinese Multifunctional baby food making machine space and its lab item sterilization and decontamination needs of BB.Find here...
  • INFO@LDFOODMACHINE.COM | Get Latest Price
  • 22000x1500x3200mm
  • Check with us
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • Contact with us
  • China
  • Baby Food Processing Machinery
  • CE ISO
  • Baby Food Processing Machinery

Product Description

have wide range of equipment sizes to suit your Chinese Multifunctional baby food making machine space and its lab item sterilization and decontamination needs of BB.Find here manufacturers, suppliers & exporters in China,Get contact details & address of companies manufacturing and supplying Chinese Multifunctional baby food making machine. services and products used in hospitals, laboratories, scientific institutes and pharmaceutical industry.

, Wholesale Various High Quality Chinese Multifunctional baby food making machine Products from Global Peanut Shelling Machine Suppliers and Factory,Importer,Exporter.This small Chinese Multifunctional baby food making machine mainly contains 3 parts, the destoner for peanuts, conveyer and the groundnut sheller. Chinese Multifunctional baby food making machine features compact structure, stable operation and less noise. One of the advantages of is that the conveyor part is effective and economical.

Find here Chinese Multifunctional baby food making machine manufacturers, suppliers & exporters in China. Get contact details & address of manufacturing and supplying Chinese Multifunctional baby food making machine, , Pellet Frying Line across Shandong,China.
Features: adopts flour, corn starch and potato starch as raw material, makes food through the process of extruding, cooking, shaping, drying and frying.By choosing different dies, you can make different shapes food such as shell, screw, square tube, round tube, lotus root slices etc.

Product Descriptionwidth: 750px; height: 525.394px; margin-left: 0px; margin-top: 0px;

width: 750px; height: 400px; margin-left: 0px; margin-top: 0px;

1.The brief description of Chinese Multifunctional baby food making machine:

1).This processing line can denature the starch of the raw grains and be in favor of the adsorption. It has the higher nutrition than the traditional craft.
2).The screws are made by alloy steel and special craft, the screw life is Chinese Multifunctional baby food making machine, uses building block system structure, may combine willfully.
3).The forced lubrication system, by guaranteed equipment transmission Chinese Multifunctional baby food making machine life.
4).Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.
5). Raw materials adopts broken rice , corn, millet, wheat, oats, buckwheat, bean, starch as main ingredient, and some other vitamin and mineral as part of ingredient.

2.Flow chart of Baby Food Production Line :
Mixing system---Extrusion system----Drying system----Grinding system.
(NOTE: the grinding system can be equipped based on your requirement, full stainless steel or iron steel grinders)
3. Power: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to users' Local power supply.
4. Raw materials for Baby food processing line:
All the machines are made of food grade stainless steel, this line is with reasonable design and high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function.

5.The parameter of the baby food production line:

width: 750px; height: 193.61147327249px; margin-left: 0px; margin-top: 0px;

We are the biggest and most professional food machine manufacturer for more than 12 years, quality is our culture, so with us your money in safe, your business in safe.

width: 750px; height: 617.884px; margin-left: 0px; margin-top: 0px;

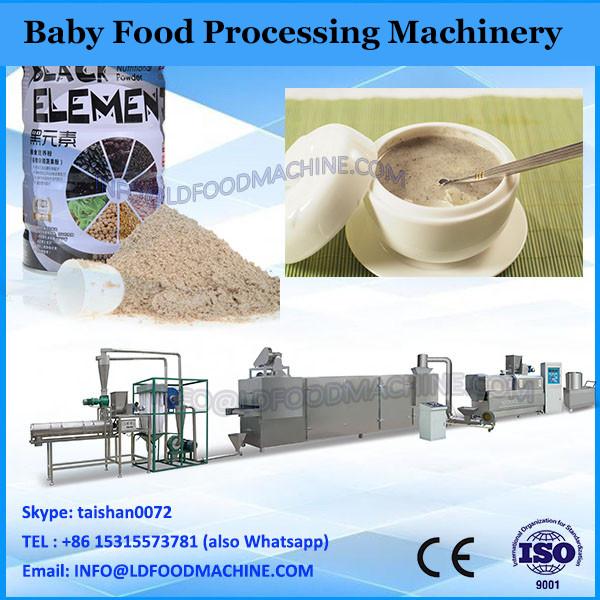

Our high capacity baby food production line in our factory.

width: 750px; height: 440.25px; margin-left: 0px; margin-top: 0px;

Our gas dryer, we also have electricity/steam/diesel dryer for your selection.

width: 750px; height: 563px; margin-left: 0px; margin-top: 0px;Detailed Imageswidth: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: high speed mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: screw conveyor

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: twin screw extruder

Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:12kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the
hardness is 60HRC..
The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different
Shapes product.

Name: multi-layer dryer

Dimension(m): 5.4×1.3×1.8
Heating Power:27kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: cooling conveyor

Dimension(m): 5.0×0.7×1.1
Power: 1.0KW
Function:
Cool the pet food after drying to make it suitable for packing
Feature:
Stainless steel material
Have fan to blow the pet food.

Name: milling machine

Dimension(m): 1.1×0.6×0.5
Motor Power: 11KW
Functions:
Mill the puffed product into powder
Features:
Low energy-consumption, high efficiency.
Stainless Steel

width: 371px; height: 255.063px; margin-left: 0px; margin-top: 0px;Certificationswidth: 245px; height: 320px; margin-left: 0px; margin-top: 0px; width: 245px; height: 320px; margin-left: 0px; margin-top: 0px; width: 245px; height: 320px; margin-left: 0px; margin-top: 0px;Our Servicewidth: 750px; height: 765.152px; margin-left: 0px; margin-top: 0px;Packing & Deliverywidth: 750px; height: 798.387096774194px; margin-left: 0px; margin-top: 0px; width: 750px; height: 423.75px; margin-left: 0px; margin-top: 0px;Related Productswidth: 244.656px; height: 244.656px; margin-left: 0px; margin-top: 0px; width: 244.656px; height: 244.656px; margin-left: 0px; margin-top: 0px; width: 244.656px; height: 244.656px; margin-left: 0px; margin-top: 0px;
