Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life.
It is recommended replace roller and die at the same time.
We have several diameter for your choice, and the size can be customized according to your requirements.
You can choose 3mm, 4mm, 5mm, 6mm and so on according to your demands.
|Model|| Die |
|Production Efficiency (kg/h)|| Motive|
|9KLP-120 with belt||105||40-50||2.2||38|
|9KLP-120 with gearbox||105||40-50||2.2||40|
|9KLP-120A with gearbox||120||60-80||3||45|
|9KLP-120 with direct motor||120||60-80||3||50|
Advantages of animal chicken feed pellet machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.

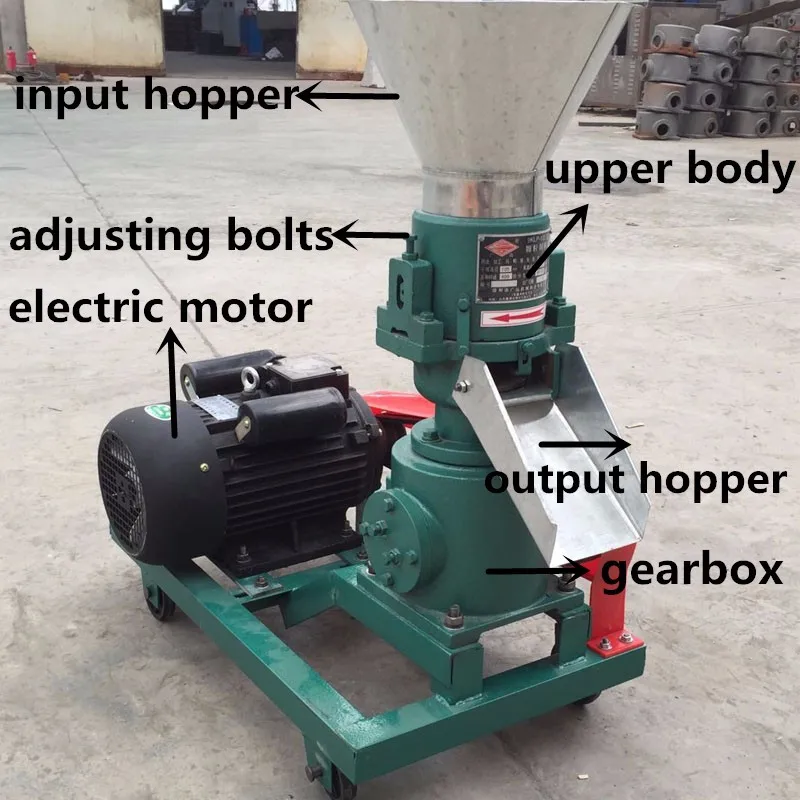

It is convenient to put the mixture into the hopper, and the mixture won't lie around all over the place.
1.The roller is machined with alloy steel.
2.The material is gelatinized between the roll and the template with high temperature and discharged from the die hole under the roll.
Hard rollers make the machine easy to use and can be placed optionally.
2.There are breast boards on the both side, and the pellets won't splash.
Matters need attention
1. The new machine for the first time must be run or otherwise can’t be used normally.
2. When the pellet machine is working, don’t reach into the input hopper by hand. If necessary, you can use a stick to help.
3. Before the machine is turned on, you need to add a little mixture before starting. When the machine is shut down, please leave a little mixture in the machine to prevent the roller and the template idling.
4. When the machine is working, and the phenomenon of stuck happens, should immediately stop and make the roller pressed to the bolt loose, and then restart the machine.
5. Each time the work is completed, the bolt of adjusting roller must be released.
6. If the machine is used for a certain period of time or squeeze out a certain amount of pellets and the pellets are made into pieces or the pellets are broken, the template should be turned to the bottom, and 2%-4% water should be added to the mixture.
7. Please often check the belt tightness to prevent the emergence of low yield, belt slippery and so on.
8. Before starting, firstly add gear oil to the gearbox reaching to 2/3 of the horizontal axis. Pellet machine in the first use should work in low load for 40 hours or so, and then replace the gearbox gear oil, 100 hours after the regular replacement. All bearings should be regularly filled with grease.
9. Particle machine works continuously and then the motor fever reaches to 70 degrees Celsius, it is a normal phenomenon.
Zhengzhou WeiWei Machinery Co., Ltd. built the factory in 1980, covering an area of over ten thousand square meters and annual output reaching to forty to fifty thousand sets.
As a foreign trade company, we integrate scientific research, design, manufacture and sales, and engage in machinery equipment technology research, development and promotion.
1. Q: Are you a trading company or a manufacturer?
A:we are the manufacturer , which has about 18 years experience and own research and development team.
2. Q: How to order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
3. Q: When will make delivery ?
A: Delivery Time
As usual, 7-15 days after getting payment. (Specific time according to order quantity)
L/C, T/T, Western Union, Paypal
Transported by sea, by air or by express.
6. After-sales Service
As an experienced manufacturer, you can rest assured of the quality and after- sales service.
Floating fish animal cattle chicken feed pellet making machine in bangladesh is the use of rice flour, flour and other kinds of grain flour as raw materials to add some vitamins, trace elements and other high-nutrition ingredients mixed uniformly after extrusion curing and then for nutrition to strengthen the rice, after drying, shape, appearance taste edible method and natural The rice is consistent and supplements the lack of nutrients in natural rice. can also customize special rice with different functions according to different groups of people. Jinan Joysun Machinery Co., Ltd. has single screw rice extruder and twin screw extruder.
can be freely matched according to the requirements! Floating fish animal cattle chicken feed pellet making machine in bangladesh technology is a breakthrough in the recycling of grain using the principle of extrusion. The most important feature of technology is the addition of various nutrients essential to the human body to food, producing a variety of health foods, curative foods and functional foods. The products are easy to eat and easy to use. Digestion and absorption, welcomed by consumers. Artificial rice alias nutrition rice, gold rice.
Jinan Joysun Machinery Co., Ltd. was established in 1993. It is located in Shandong Province with a registered capital of 2 million RMB and covers an area of 9,800 square meters. It is a professional food machinery manufacturing company integrating research and development, professional production, direct sales and after-sales services. We took the lead in awarding and passing the quality standards of commercial products in Shandong Province, and successfully passed ISO9001:2008 international quality management system certification, and exported to the European Union's CE safety certification, BV certification, third-party certification. Now we have successfully obtained the trademark.
