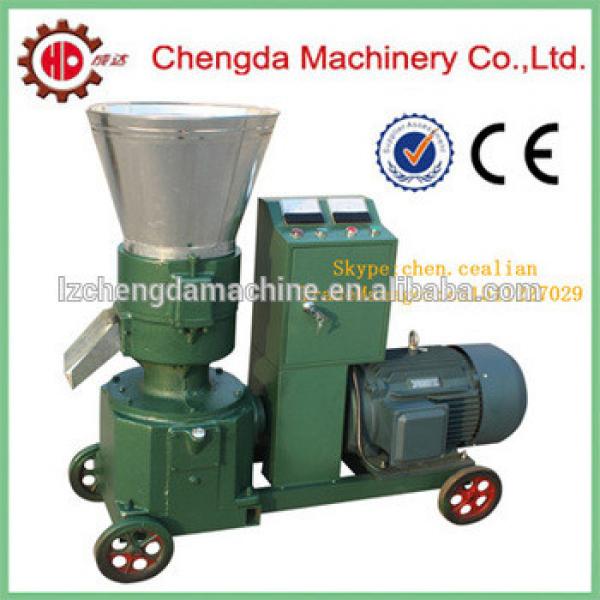

flat die animal feed pellet making machine and flat die wood pellet mill

flat die animal feed pellet making machine and flat die wood pellet mill

2014 Hot Sale! Make your own pellets at home! I ntroduction of Our Pellet Mill: These pellet machines are the new...
  • Negotiation | Get Latest Price
  • 120*52*107cm
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 34
  • Original flat die animal feed pellet making machine and flat die wood pellet mill
  • Chengda Machinery
  • CE
  • KL260B

Product Description

2014 Hot Sale!

Make your own pellets at home!

Introduction of Our Pellet Mill:

These pellet machines are the new designed products of our company and the main parts of the fodder machinery system. Now this animal feed pellet machine is mainly used to make feed pellets for rabbit, pigeon, layer chicken, broiler, duck, goose, fish, pig and so on.The key parts are made of alloy steel that make it very strong and malleable.Now our machines have been exported to Western Europe,North America,Southern Europe,Eastern Europe Asia Africa and so on.

General introduction of our vertical flat die pellet mill

Pellet machine can make all kinds of solid grain into small pellet feed for animals like fish, shrimps, chicken, rabbit, horses, goats, etc.
It can also make all kinds of saw dust, paddy straw, sunflower stalk, forestry wastes, wood chips, and many other wastes into wood pellets to be used as fuels.

Features our vertical flat die pellet mill

1) The vertical flat die pellet mills are easier to clean than big ring die pellet mill.
2) Able to change die and roller faster and easily.
3) Small and lightweight, making small-scale production.
4) Visibility. It is possible to view into the chamber when pelletizing, so you can solve any problem in time.

Working principle

The flat die pellet machine works on vertical principle. The raw material is put into the hopper from above, and then it drops down into the pelletizing area. The die is stationery while rollers are rotating. When falling into this area, materials will naturally be compressed into pellet between rollers and die through the die holes.


Knowing your machine

Specifications:

1. This series machine can be powered by both diesel engine and e-motor.

2 .We adopt the new design of direct connection of motor shaft and he main shaft that overcome the loose defect of belt connecting as long time using.

3. High accuracy gearbox and high output.

4. It is widely used in large,middle, small scale aquatic. food and feed processing factory,

livestock farm, poultry farm, individual raisers, middle and small farm.

5. International advance steam fittings and imported pressure reduction valve.

6. Flat die is made with international advanced equipment for long lifespan.

7. Drive with heavy duty gearbox, which can produce continuously in most adverse condition.


Data of KL-B series pellet mill

Model No.Power(E-motor) 50HZFeed output Wood outputN/G weight(kg)Pellet diameterPacking Size(cm)
KL120B2.2kw220v 1phase30-6020-3080/1002.5-10mm75*32*62
KL120B3kw 380v 3phase 50-10030-5080/1002.5-10mm75*32*62
KL150B4kw 380v 3phase100-20050-10095/1152.5-10mm77*34*68
KL200B7.5kw 380v 3phase200-300110-140200/2302.5-10mm100*43*95
KL230B11kw 380v 3phase300-400150-190290/3202.5-10mm114*47*97
KL260B15kw 380v 3phase400-600220-280330/3602.5-10mm120*52*107
KL300B22kw 380v 3phase600-800280-320410/4502.5-10mm127*52*107

Data of KL-C series pellet mahcine

Model No.Power(E-motor)Feed output Wood outputN/G weight(kg)Pellet diameterPacking Size(cm)
KL120C2.2kw 220v 1phase60-10040-6080/100kg2.5-10mm75*35*65
KL120C3km 380v 3phase60-10040-6080/100kg2.5-10mm75*35*65
KL150C4km 380v 3phase90-12050-9095/115kg2.5-10mm75*35*65
KL200C7.5km 380v 3phase200-300110-140200/230kg2.5-10mm100*46*90
KL230C11km 380v 3phase300-400150-190290/320kg2.5-10mm114*54*93
KL260C15km 380v 3phase400-600220-280330/360kg2.5-10mm122*53*107
KL300C22km 380v 3phase600-800300-360410/450kg2.5-10mm128*58*105
KL360C22km 380v 3phase700-900300-380470/550kg2.5-10mm134*58*106
KL400C30km 380v 3phase900-1100400-550630/660kg2.5-10mm145*62*115

The terms of warranty and spare parts

Our pellet mills are guaranteed with 1 year quality assurance from the date of goods shipment.

When we are talking about spare parts for a pellet mill, by and large, we are talking about die, roller and bearing. Practically, that how often you will need to renew spare parts is depending on what raw material you are making pellets from. Apparently, compared with making straw pellets, pellet mill that are making wood pellets requires a higher frequency for changing spare parts. We supply clients with high quality pellet mill dies, rollers, bearings and other parts. Clients are available to order at anytime. If you need spare parts, please contact me or test message.

Flat die Roller

How to Choose A Perfect Flat Die Pellet Machine
Flat die pellet mill takes the circular motion as the principle. The press roller, main shaft and die mould are of high quality alloy steel. There are common two design of flat die pellet machines: rotating rollers with stationary die or running die with stationary rollers. Though the two kinds of pellet mills can both make wood pellets and feed pellets, there is slightly difference. Roller driven pellet machine is more suitable for making biomass pellets, especially for making hardwood pellets; die driven pellet making has good performance in making feed pellets and soft wood pellets. Then, let us talk about the engine of pellet press. There are two choices, flat die pellet mill with electric motor and flat die pellet mill with diesel engine. Electric pellet mill is more energy-saving and environmental protection, while you must make sure there is enough electricity in your pellet making sites
.

series of pellet mill, hammer mill

Model No.Diesel EngineFeed output Wood outputN/G weight(kg)Pellet diameterPacking Size(cm)
KL120A8HP Diesel Engine60-10040-60120/1402.5-10mm87*44*73
KL150A8HP Diesel Engine90-12050-90120/1402.5-10mm76*43*71
KL200A15HP diesel engine200-300110-140280/3102.5-10mm118*56*95
KL230A22HP diesel engine300-400150-190280/3102.5-10mm118*56*95
KL260A35HP diesel engine400-600220-280450/4802.5-10mm184*70*116
KL300A55HP diesel engine600-800280-320520/5602.5-10mm220*60*123
KL360A55HP diesel engine700-900300-380600/6202.5-10mm227*62*126
KL400A55HP diesel engine900-1100400-550750/7802.5-10mm227*62*126
Model No.gasoline engineFeed output Wood outputN/G weight(kg)Pellet diameterPacking Size(cm)
KL120A7.5HP gasoline engine60-10040-6080/1002.5-10mm76*43*71
KL150A7.5HP gasoline engine90-12050-9095/1152.5-10mm76*43*71
KL150A13HP gasoline engine200-300110-14095/1152.5-10mm87*46*73

ModelTractor PowerFeed outputWood outputN/G weight(kg)Die Hole Packing Size
KL120P6-10HP60-10040-6070/902.5-10mm76*42*71
KL150P6-12HP90-12050-9090/1002.5-10mm76*72*71
KL200P10-18HP200-300110-140140/1602.5-10mm77*56*102
KL230P18-28HP300-400150-190150/1802.5-10mm77*56*102
KL260P28-45HP400-600220-280200/2302.5-10mm77*56*115
KL300P45-55HP600-800300-350260/2902.5-10mm77*56*115
KL360P50-60HP700-900300-380300/3302.5-10mm87*85*116
KL400P50-70HP900-1100400-550400/4202.5-10mm87*85*116

Materials and Pellets Working processing

Homemade Pellets Used as Stove Fuel

Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is used to press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.

Feed pellets for animals

Ready to exported

Our company and certification

As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.

Packing and shipping

After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. We can offer you 12 months warranty for main parts to protect your interests and save your money.
