chicken farm equipment animal feed pelletizing machine mill

chicken farm equipment animal feed pelletizing machine mill

Product Description Product Description This SZLH 350 Poultry Feed Making Machine can be used to make feed pellets for all ages chicken. The Capacity is 5-8T/H , And...
  • Negotiation | Get Latest Price
  • 3000*126081860
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 167
  • Original chicken farm equipment animal feed pelletizing machine mill
  • Richi
  • CE ISO
  • SZLH508

Product Description

Product Description

Product Description

This SZLH 350 Poultry Feed Making Machine can be used to make feed pellets for all ages chicken. The Capacity is 5-8T/H , And it is a good choice for the farm owner and those who plans to step into the poultry feed making industry.


Reasons:

1. they don't have enough experience in making poultry feed, but they have know enough knowlege about how to raise chickens, which is more convincing when they sell the pellets.

2. The capacity is not big, which can fulfill their requirement for their own farm use, reducing the cost; and the capacity is not too small, take 8 hours working per day, the output for one day is about 40 to 70 tons, which means at least in the 10 years, the capacity of this Animal Poultry Feed Pellet Mill Equipment can meet the requirement of the market;

3. The total invest for this Animal Poultry Feed Pellet Mill Equipment is not big, which also reduces the risk.

Poultry feed making machine models
Model Main Power Feeder Power Conditioner Power Dia.of Ring Die Pellet Size Capacity
SZLH250 22KW 0.55KW 1.5KW 250mm φ1.0-12.0mm 1-2T/H
SZLH320 37KW 1.5KW 2.2KW 320mm φ1.0-12.0mm 3-5T/H
SZLH350 55KW 1.5KW 3.0KW 350mm φ1.0-12.0mm 5-8T/H
SZLH420 110KW 2.2KW 7.5KW 420mm φ1.0-12.0mm 8-12T/H
SZLH508 132/160KW 2.2KW 11KW 520mm φ1.0-12.0mm 12-18T/H

Main Features

1.With two rollers inside, better for poultry feed making;
2.Manufacturing according to internationally advanced technology standard;
3.The quality matching with the European standard;
4.Gear driving system, with good transmission rate, stable and reliable performance and low noise;
5.The key components are imported to ensure longer service life and lower cost for maintenance;
6.Raw material contacting parts are made by stainless steel;
7.Widely used for pelleting the high-grade livestock and poultry feed.

pellet machine , pellet mill , pellet making machine , feed machine, feed pellet machine, feed pellet mill , feed pellet making machine , feed making machine

Detailed images

Full Stainless Steel Conditioner

1 All sections is made by stainless steel
2 Corrosion resistance,safety and health
3 With heat insulating layer
4 Dood effect at materials be cooked and sterilized
5 Conditioning time is 75-150s
6 Simple construction,ease of installation
7 Even discharging
8 High gelatinization: 45~50%.
9.Large side access door design for easy cleaning and maintenance.pellet machine , pellet mill , pellet making machine

Full Stainless Steel Conditioner

Conditioning Time
livestock feed :≥15-40s,equip single-layer conditioner
fish feed: ≥ 40-60s,equip double-shaft different speed conditionerlayer conditioner
or single-layer conditioner layer conditioner.

Mono roller and small inner diameter of die .Available with die openings varied from φ2mm-12mm , satisfying different experimental designs' requirements.

feed machine, feed pellet machine, feed pellet mill

feed pellet making machine , feed making machine , animal feed pellet machine

Siemens Motor

All models of our Animal Feed Pellet Machinery are use Siemens Motor.

Checking Hole

The checking hole, all the part that contact with the materials will be made by stainless steel.

Stainless steel ring die.

The ring die of the Animal Feed Pellet Machinery is made by Stainless steel.



Stainless Steel Ring Die

1 Livestock feed:
φ2.0-2.5mm,equiped φ1.2-1.5mm screen hammer mill
φ3.0-3.5mm,equiped φ2.0-2.5mm screen hammer mill
φ4.0-5.0mm,equiped φ2.5-3.0mm screen hammer mill
φ6.0-8.0mm,equiped φ4.0-5.0mm screen hammer mill
2 Fish feed
φ1.0-3.0mm, equiped φ1.0-2.0mm screen hammer mill

Pelleting Chamber.

The pelleting chamber of the Animal Feed Pellet Machinery is made up of two rollers, two roller shells and ring die, and other fixing parts.


Stainless Steel Ring Die

1 Livestock feed:
φ2.0-2.5mm,equiped φ1.2-1.5mm screen hammer mill
φ3.0-3.5mm,equiped φ2.0-2.5mm screen hammer mill
φ4.0-5.0mm,equiped φ2.5-3.0mm screen hammer mill
φ6.0-8.0mm,equiped φ4.0-5.0mm screen hammer mill
2 Fish feed
φ1.0-3.0mm, equiped φ1.0-2.0mm screen hammer mill

Exhibition

Exhibition

♦ 2015 China Feed Industry Expo & Animal Production Promotion was held at Nanjing International Expo Center. the Expo was organized by National Animal Husbandry Service and China Feed Industry Association.

♦ Many international copanies were take part in the exhibition, such as Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group.

♦ The scope of the exhibition includes feed ingredients, feed and feed additives, animal feed, feed processing machinery and equipment, animal health products, veterinary drugs, pharmaceutical additives, poultry processing equipment, and animal husbandry machinery and equipment.

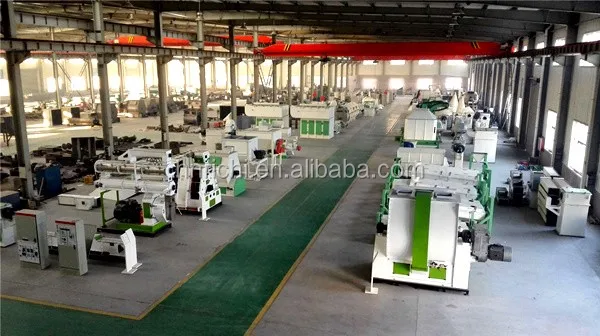

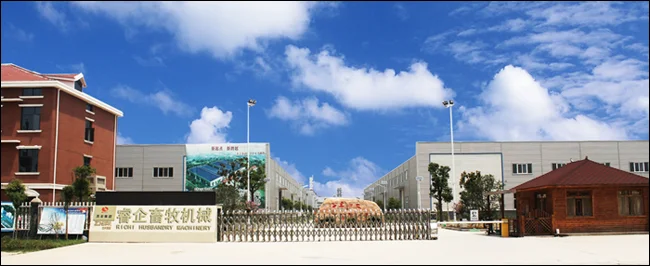

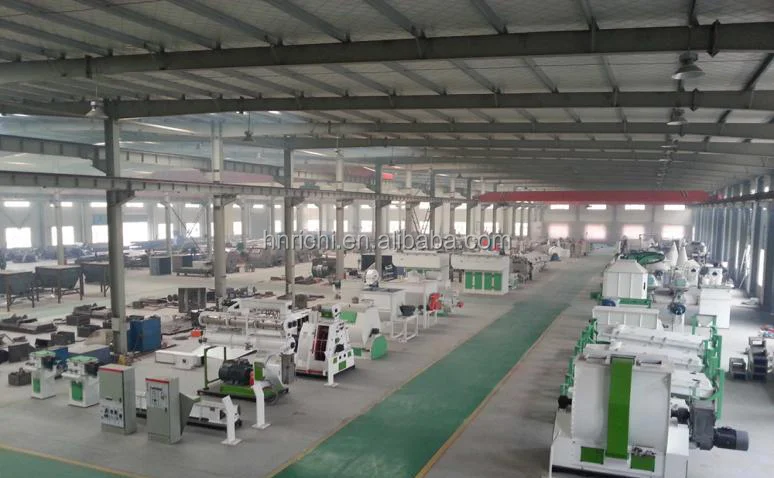

Packing & DeliveryCustomer VisitOur factory

Henan Richi Machinery Co., Ltd was established in 1990.

Our company is a qualified manufacturer which specializes in developing, producing and marketing topclass Cattle Poultry Feed Plant, feed pellet production lines, feed curing machines, various biomass granule production lines designation,manufacturing and installation.

There are over 500 workers in our company, among them there are about 80 engineers and over 100 technician.

Our outstanding Richi Team and strict and scientific management system, which enable us to supply high quality and convenient turn- key projects to our clients.

pellet machine , pellet mill , pellet making machine , feed machine, feed pellet machine, feed pellet mill , feed pellet making machine , feed making machine , animal feed pellet machine , poultry feed pellet machine , animal feed pellet mill , animal feed pellet making machine , animal feed making machine , chicken feed pellet machine,feed mixer , feed hammer mill
