Fanway hot air belt type animal feed / fish feed pellet dryer machines

Fanway hot air belt type animal feed / fish feed pellet dryer machines

Fanway hot air belt type animal feed / fish feed pellet dryer machines Product Description 1. Description-----fish feed pellet dryer machines Our fish feed...
  • Negotiation | Get Latest Price
  • 1700*840*1550MM
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 194
  • Original Fanway hot air belt type animal feed / fish feed pellet dryer machines
  • Fanway fish feed pellet dryer machines
  • CE ISO
  • FY-SH Feed drying machine

Product Description

Fanway hot air belt type animal feed / fish feed pellet dryer machines

Product Description

1. Description-----fish feed pellet dryer machines

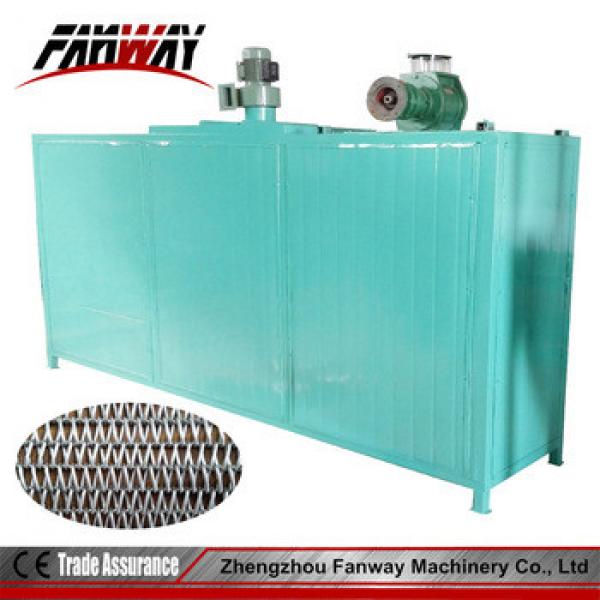

Our fish feed pellet dryer machines belongs belt type hot air dryer machine, which is mainly used in the feed pellet production line. This dryer machine could reduce the mositure of pellet quickly due to its multilayer belt circle round design.

The belt of the fish feed pellet dryer machines is made by stainless steel, durable and good temperature conductivity which is also propitious to drying the feed pellet.

Working principle

2. The constituent and working principle ----- fish feed pellet dryer machines

This fish feed pellet dryer machines is composed of several independent units. Each unit consists of circulating fan, heating device, separate or common fresh air suction system and exhaust system. The operating parameter of each unit is controlled independently, ensuring reliable and optimized operation.

Working principle:

*** The feeder distributes the fish pellets evenly on the top layer of belt conveyor, which is made by stainless steel wire mesh or perforated plate.

*** The pellets move along with the belt conveyor and falls gradually on the lower layer.

*** Hot air passes through the pellets and brings away the moisture.

*** Finally the pellets are discharged through the outlet.

Technical Parameter

3. The technical parameter ----- fish feed pellet dryer machines

Model

Belt With

Total Power

Capacity

FY-SH500

500MM

10KW

300-400KG/H

FY-SH800

800MM

25KW

600-800KG/H

FY-SH1000

1000MM

55KW

1000-1500KG/H

Features

4. Features ------ fish feed pellet dryer machine

1) Simple structure, easy installation and maintenance.
2) The pellets will not be subject to vibration or impact during the drying process, the pellets are not easy to be crumbled.
3) Suitable for materials which require low drying speed and long drying time.

4) Widely used for drying feed pellet, grains, etc.

Feed production Line

5. Feed production line------ Fish feed pellet dryer machines

The feed pellet production line is goes as follows:

Material crusher----powder mixer----pellets extruder---pellet dryer---pellet cooler---pellet packing

1) Crusher----To crush the raw material into powder.
2) Mixer -------To make all kinds of powder mixed evenly.
3) Extruder----To make many kinds of feed pellet. Such as fish feed, pet feed.
4) Dryer--------To remove the extra moisture of the pellet.
5) Cooler------ To reduce the temperature of the pellet after dring.
6) Packaging-- After cooling the feed pellet, we could package it.

The capacity of the feed production line have 120-150KG/H, 180-200KG/H, 200-250kg/h, 320-350KG/H, 500-600KG/H, 700-800KG/H, 1.0-1.2T/H, 1.8-2.0T/H for your choosing.


Packaging & Shipping

6. Packaging & Shipping-------Fish feed pellet dryer machines

1) we will package the fish feed pellet dryer machines by standard export wooden case packing to portect the machine and avoid any damage during the shipping and delivery.
2) we will make the fish feed pellet dryer machines as quickly as possible after get the clients order and then arrange the delivery.

Company information

7. Company Information

Zhengzhou Fanway Machinery Co.,Ltd is a professional manufacturer of the floating fish feed pellet machine. We specialize in researching, developing, producing and marketing top quality fish feed related machines—crusher, mixer, feed extruder, dryer, cooler, oil coater and packing machine. We can design turnkey floating fish feed production line for customer.

Our Services

1) We will give detailed introduction of the machine according to the client capacity requirement.

2) Share any information about the machine that the clients need, like detaield pictures, video,etc

3) Design floating fish feed plant for client.

4) Help the clients to do suitable floating fish feed formulation.

5) Give detailed instruction manual and video to help the client operation the machine.

8. Any questions, please feel free to aske me

Contact Person: Ms Linda Yang

Skype: lindayang0820

E-mail: lindayang(at)zzfanway.com

Whats App & Viber & Telphone: 0086 15037137614

Fanway hot air belt type animal feed / fish feed pellet dryer machines is suitable for foods such as casual products, soy products, meat, and aquatic products. is widely used in large, medium and small-sized fried food manufacturers, school canteens, and large-scale restaurants.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integrating R&D, manufacturing, sales, and after-sales services.
The main production of food frying equipment, cleaning equipment, blanching cooking equipment, pasteurization line, drying machine, vacuum packaging machines and other food processing equipment.
Fanway hot air belt type animal feed / fish feed pellet dryer machines is the essence of absorbing the same kind of equipment, retaining the advantages of large-scale equipment for enrichment, and referencing the user's feedback information throughout the country for design and development.
has the characteristics of low one-time investment, low energy consumption, multiple functions, small size, high profit, convenient use and maintenance. The full set of equipment consists of peeling, slicing (strips), fluttering, dehydration, oil-water mixed frying, degreasing, seasoning, packaging and auxiliary equipment.
