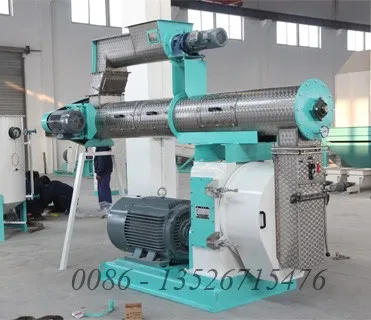

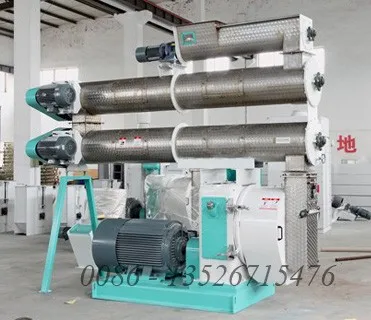

This type ring die feed pellet production line is used to process poultry and animal feed, such as chicken feed, rabbit feed, cat food, dog food, cow feed, sheep feed, pig feed fish feed, etc. The raw mateirals can be corn, wheat, beans, grain, etc.
|Model||ZS - 32||ZS - 35||ZS - 40||ZS - 42||ZS - 508|
|Capacity||2 - 5 T/H||2 - 8 T/H||2 - 10 T/H||3 - 12 T/H||4 - 20 T/H|
|Power of feeding auger||0.55KW||1.5KW||1.5KW||1.5KW||1.5KW|
|Power of conditioner||2.2KW||3KW||3KW||5.5KW||7.5KW|
|Inner diameter of die||320mm||350mm||400mm||420mm||508mm|
|Feeder auger speed||12 - 120RPM|
|Pellet size(Diameter)||2, 3, 4.5, 5, 6, 8, 10mm|
|Pellet ratio of briquetting||≥95%|
|Percentage of powdered pellets||≤12%|
|Stability of pellet in the water||≥20MIN|
|Die working temperature||0.1 - 0.4Mpa|
|Steam working pressure||0.1 - 0.4Mpa|
|Steam consumption t/h||≥0.3||≥0.3||≥0.4||≥0.5||≥1|
|Steam temperature||130 - 150°|
1.This type of product widely applied with mature technology.
2.The main driving adpots high - precision gear driven, thus the output is improved 20% compared with belt driven.
3. Equipped with international famous brand bearing and oil seal to ensure the machine stable working with high efficiency and low noise.
4. The feeder applied with inverter control motor (VFD motor) to ensure the evening feeding and the quality of final pellets.
5.Ring die with different diameter of holes is closable, the dies are adopt high quality craft and long lifetime, the surface of final pellets is smooth and shining the pellets is very good quality.
6. The compensation type snake - like spring coupling adopt with international advanced technology, have properties of novelty, compact structure, high safety, low noisy and low fault.Plus size conditioner and klemmuffe type conditioner is closable, thus to improve the conditioning effect of the pellets.

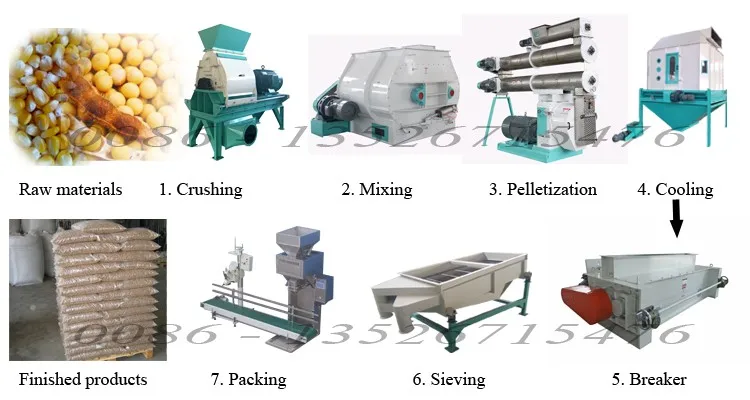

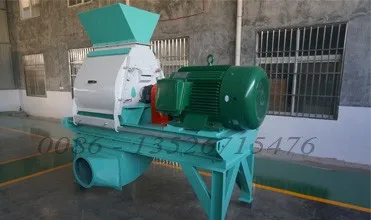

The feed grinder can grind the raw material ingredients to the required size. The grind fitness is different of different grinders. We supply four types of feed grinders. The feed hammer mills are suitable for small-sized or medium-sized animal feed processing line. The wide chamber fine grinders and water drop hammer mills are usually used in large-sized and medium-sized feed pelletizing factories. The ultra fine feed grinder is designed for grinding raw materials of special aquatic feed.

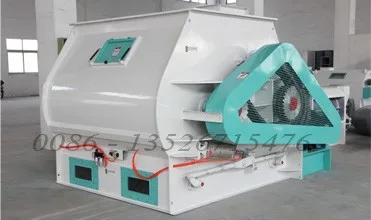

Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality. We supply two kinds of high efficiency feed mixers: twin-shaft mixer for mixing powdered or particle materials and screw belt mixer for mixing powdered materials. Both of them can be equipped with atomizing spraying system to add needed liquids, which can improve the feed pellet quality.

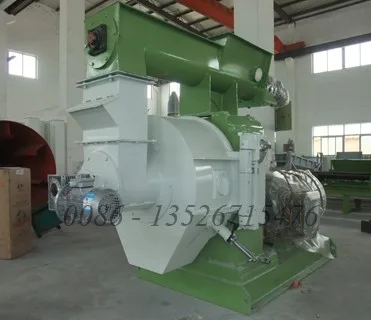

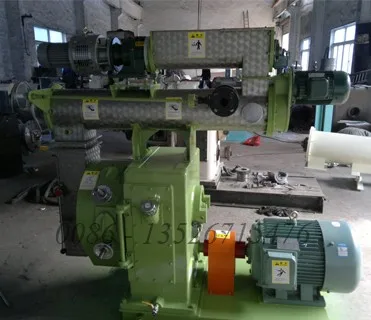

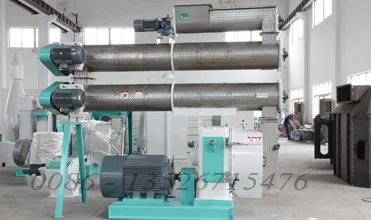

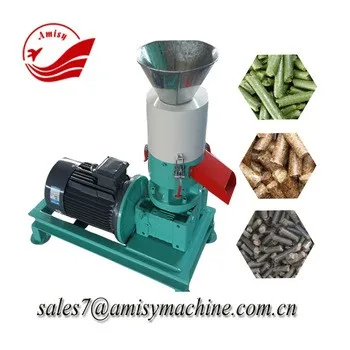

Feed pellet mill is the main equipment of the whole feed line for chicken. There are two common kind of feed pellet mills: ring die feed pellet mill and flat die feed pellet mill. If you want to produce feed pellets with large quantity, the ring die feed pellet mill is the ideal choice. If your demanded quantity is small, you can choose the flat die feed pellet mill. Also, we supply the aquatic feed pellet mill for pressing fish feed pellets and shrimp feed pellets etc.

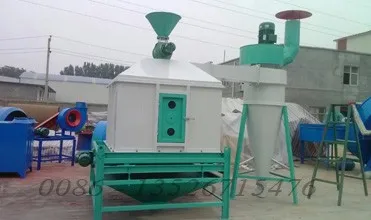

The feed pellets pressed out by the feed pellet mill are hot and moist. They can’t be crushed, screened or packed immediately. Counterflow feed pellet cooler is designed to cool or dry the feed pellets.

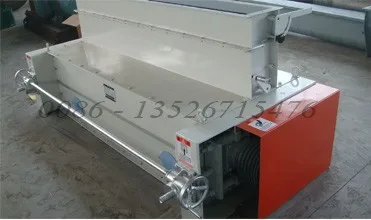

Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.

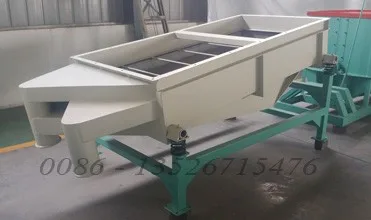

The crushed feed pellets are with different sizes, and there may be some powder. The vibrating grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

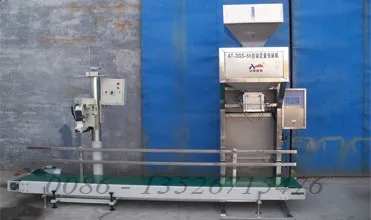

The feed pellets should be packed for transporting, storing or selling. Automatic filling, weighing and packing machine can fill weigh and pack the pellets automatically with high accuracy.

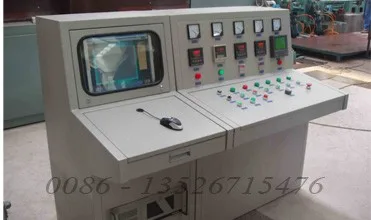

With the automatic PLC control system, the animal feed processing line is with high efficiency and convenient operation.
1.Full automation of the complete production line
2.Constant product quality at a high throughput rate
3.Lower manpower requirements, less time cost
4.Better monitoring of the production process
5.High availability due to the use of proven quality components
6.High flexibility and adjustable speed.
Within 20 - 25 working days after prepaymentOur ServicePre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
1. Q: How do you control the quality?

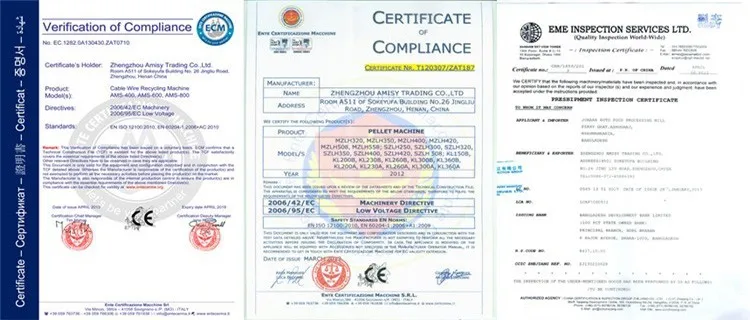

A: We keeps strict management and monitoring, to ensure product quality can meet customer requirements. All of the machine be tested successfully in AMISY workshop before shipment. You can also be assured by our one-year warranty and CE/ ISO9001 Certificates.
2. Q: What is your superiority comparing with other suppliers?
A: Our products has been exported to nearly 200 countries, we have professional engineer and technical team, rich experience in overseas service, our machine are factory direct sale products, we can design and manufacture various type and specification machine and equipment, according to customer’s requirements and local environmental protection requirement. Our engineer and technical team can go abroad immediately at any time to provide technical support and maintenance service for overseas clients.
3. Q: How to train our staff about operation and maintenance?
A: We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
If you have any other questions, please feel free to contact us as below:
Mobile Phone 0086 - 13526715476
E-mail sales7 @amisymachine.com.cn
Sales Manager Ranger Qi
Animal / poultry feed pellet mill

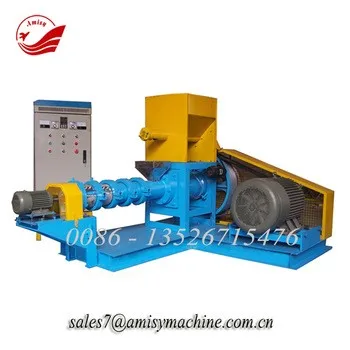

Floating fish feed production line / animal feed extruder machine
