poultry feed processing machine to make animal food pellets

poultry feed processing machine to make animal food pellets

Product Description Introduction for poultry feed processing machine Our flat die pellet mill are devided into the KL series pellet machine and the MKL series pellet...
  • Negotiation | Get Latest Price
  • 114*54*93cm
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 121
  • Original poultry feed processing machine to make animal food pellets
  • Chengda Machinery
  • CE ISO
  • KL230C

Product Description

Product Description

Introduction for poultry feed processing machine

Our flat die pellet mill are devided into the KL series pellet machine and the MKL series pellet machine. Our KL series feed mill can press both for the feed pellets and the wood sawdust pellets, while the capacity of making wood sawdust pellets is lower than feed pellets. Our MKL series pellet mill have the special design for making wood sawdust pellets.

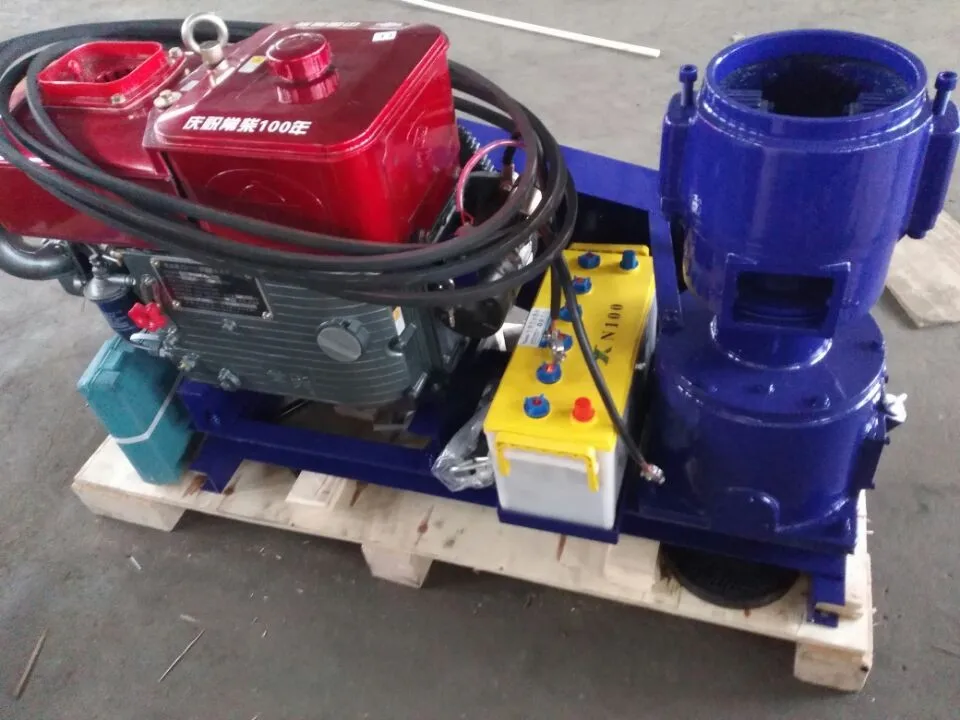

Our flat die pellet mill can be powered by electrical motor, diesel enginen, gasoline engine and tractor. KL-A series pellet mill are driven by the diesel engine or gasoline. KL-B and KL-C series pellet mill are driven by the electrical motor and the KL-P pellet mill are driven by tractor.

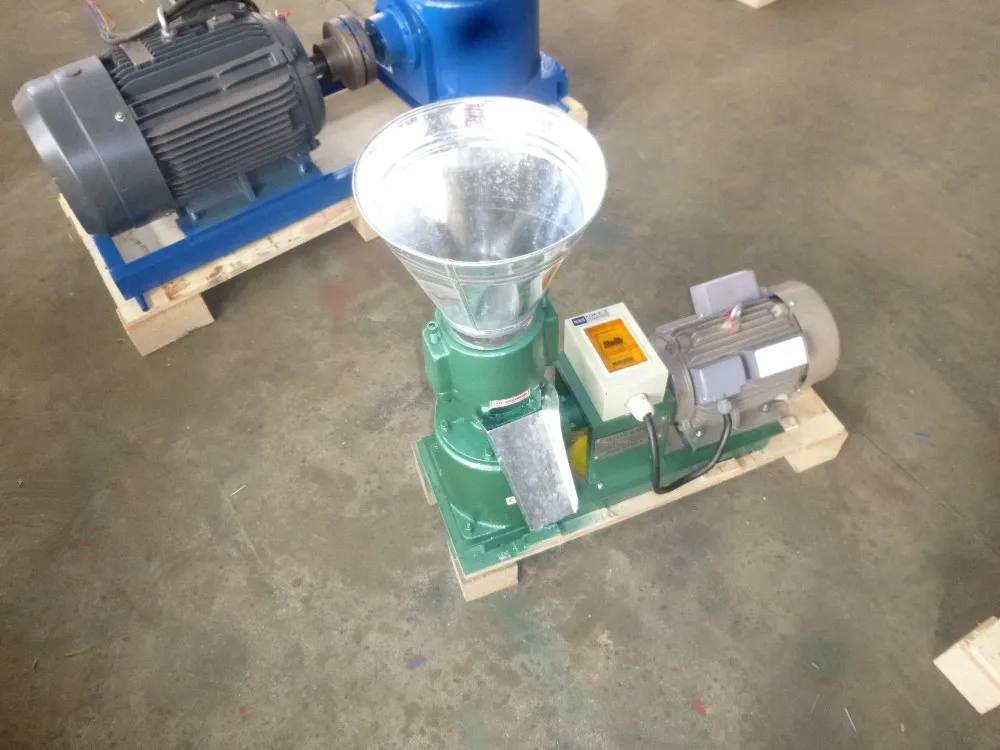

KL Series poultry feed processing machine
1.This machine is flat die pellet machine with 11kw electric motor.
2. This machine not only pess feed pellets, also sawdust wood pellets.
3. The size of the final pellets: 2.5-10mm is ok, if you make animal feed pellets, 2.5-6mm is better. If you make the wood pellets, 6-8mm is better.
4. Moisture content of the raw materials: 12%-20%.
5. Feed Capacity: 300-400kg/h
Sawdust Wood Capacity: 150-190kg/h

Technical Parameters of the poultry feed processing machine

Model Power Die Diameter Die Hole Specification Saw Dust Capacity Feed Capacity Packing Size
KL120B 2.2/3kw 120mm 2.5-10mm 40-60kg/h 60-100kg/h 75*32*61cm
KL120C 2.2/3kw 120mm 2.5-10mm 40-60kg/h 60-100kg/h 75*32*61cm
KL150B 4kw 150mm 2.5-10mm 50-90kg/h 90-120kg/h 75*35*65cm
KL150C 4kw 150mm 2.5-10mm 50-90kg 90-120kg/h 75*35*65cm
KL200B 7.5kw 200mm 2.5-10mm 100-150kg/h 200-300kg/h 100*43*95cm
KL200C 7.5kw 200mm 2.5-10mm 100-150kg/h 200-300kg/h 100*46*95cm
KL230B 11kw 230mm 2.5-10mm 150-190kg/h 300-400kg/h 114*47*97cm
KL230C 11kw 230mm 2.5-10mm 150-190kg/h 300-400kg/h 114*54*93cm
KL260B 15kw 260mm 2.5-10mm 200-250kg/h 400-600kg/h 120*52*107cm
KL260C 15kw 260mm 2.5-10mm 200-250kg/h 400-600kg/h 120*52*107cm
KL300B 22kw 300mm 2.5-10mm 220-300kg/h 600-800kg/h 127*52*107cm
KL300C 22kw 300mm 2.5-10mm 220-300kg/h 600-800kg/h 128*58*107cm
KL360C 22kw 335mm 2.5-10mm 300-380kg/h 700-900kg/h 134*58*106cm
KL400A 55HP 395mm 2.5-10mm 400-450kg/h 900-1100kg/h 145*62*115cm

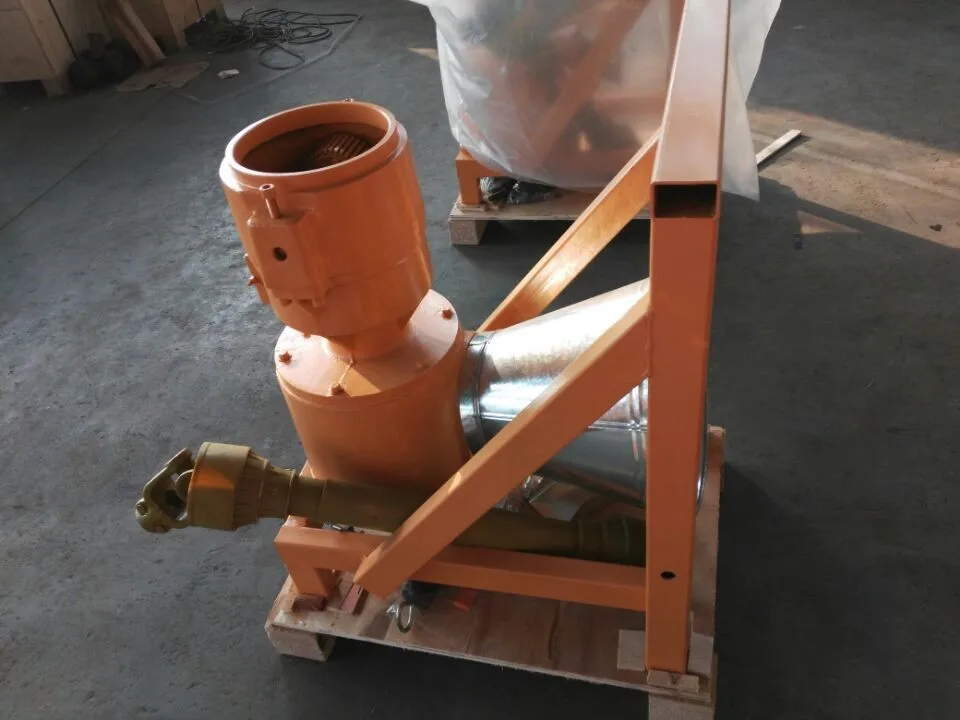

Other Flat Die Pellet Machines--- KL-A Series, KL-P Series and KL-C Series


Advantages of poultry feed processing machine

1)Simple structure, wide adaptability, covers a small area, low noise. High efficient and low consumption
2)Powder feed, grass meal doesn’t need or with a little liquid, then can be making for granulation.So basic to the moisture content of grain feed granulating before the moisture of the materials, more conducive to storage.
3)Chicken, duck, fish, cattle.pig, birds, dog, etc, than the mixed powder feed can obtain higher economic benefits.
4)Dry processing, the production of feed particle high hardness, smooth surface, internal curing, can improve the digestion and absorption of nutrients.

Widely Applications of poultry feed processing machine

It is used for pressing materials such as grain, firewood, stalk, tree branches, wood meal, fruit hull, palm and tailing of cotton plant, and widely used for recycle of livestock farms, biomass fuel plant, power plant, wood processing plant, fertilizer plant, chemical plant, food plant and cotton plant.

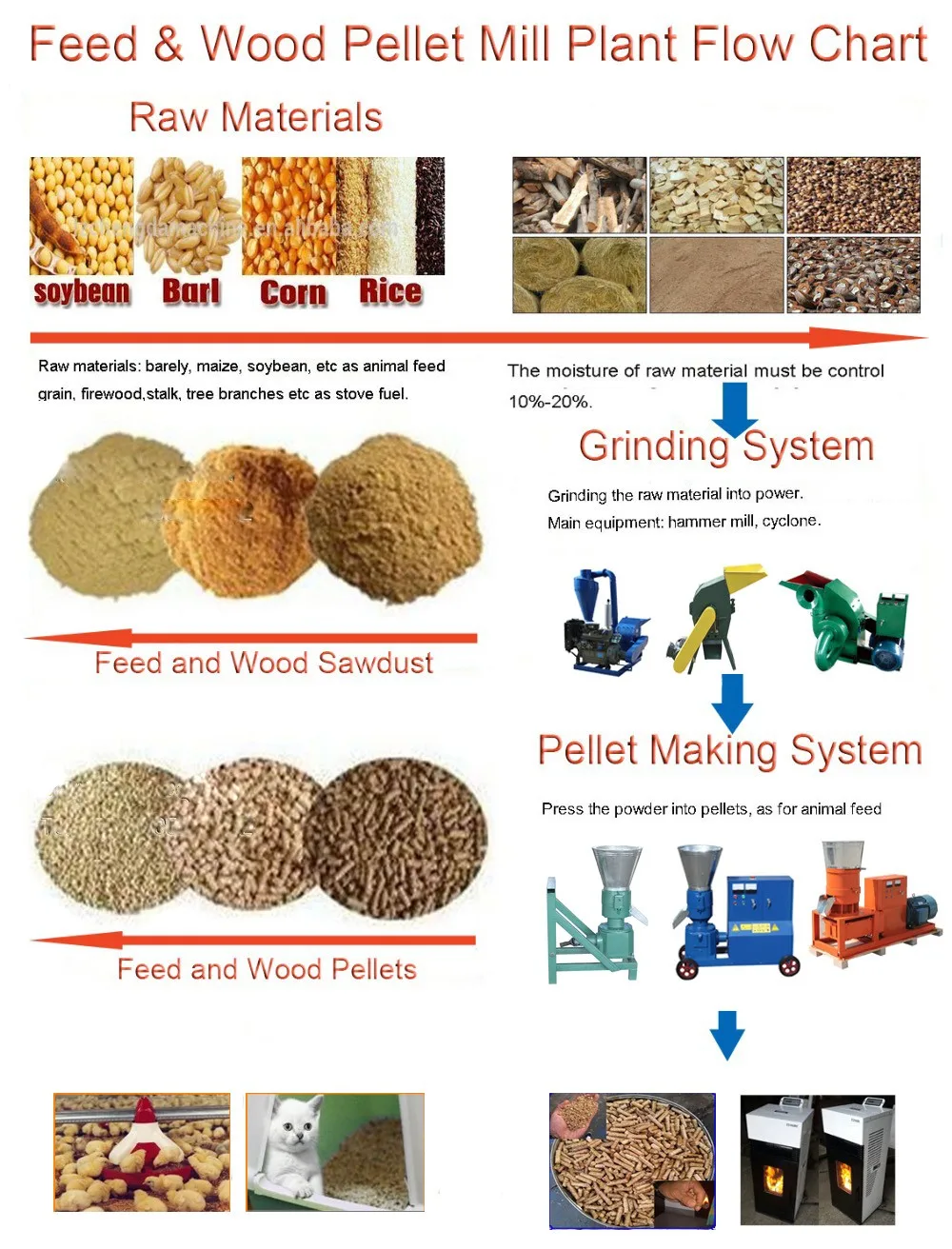

Kinds of Raw Materials

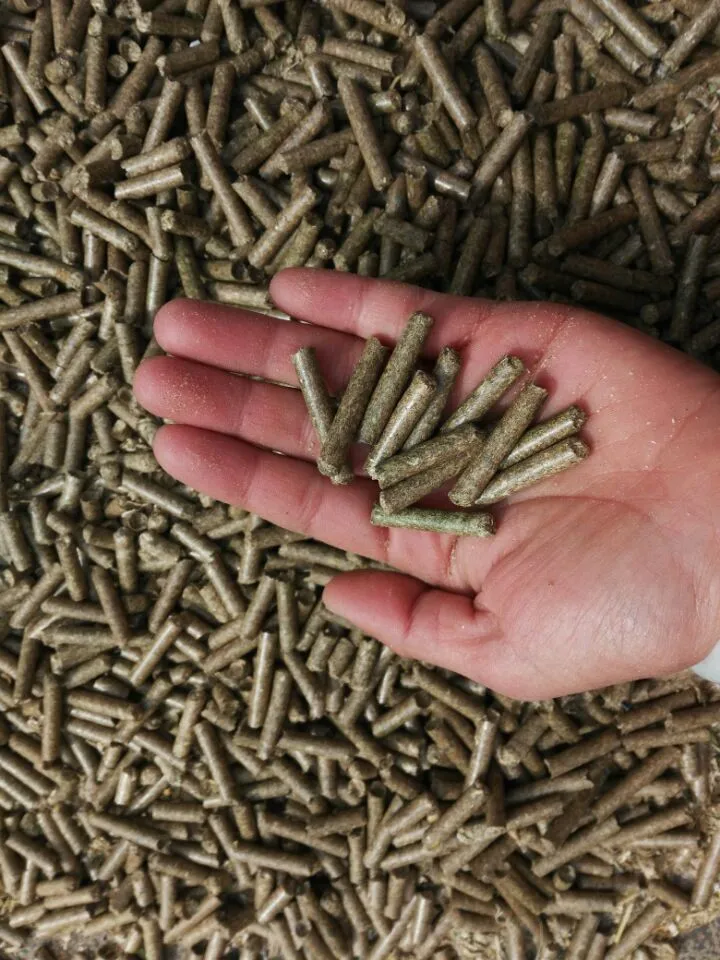

Pellets as Animal Feed

Raw Materials: soybean meal, corn, straw, green fodder, meat and bone meal, whey powder, fish meal, alfalfa, straw, grass, leaves, etc.

Pellets as Stove Fuel

Raw Materials: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, sawdust,etc.

CertificationsDetailed Images

Machine Parts

Name: Roller

Brand: chengda

Original: China, Shandong

Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life. It is recommended replace roller and die at the same time.


Main Parts

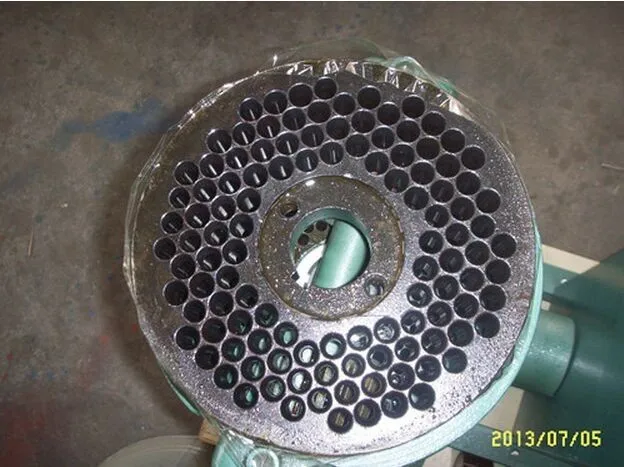

Name: Die
Brand: chengda
Original: China, Shandong
We have several diameter for your choose, and the size can be customized according to your requirements. The raw materials also made of high quality wear-resisting alloy steel.high quality alloy steel material, you can choose 2.5mm,3mm,4mm,5mm,6mm,8mm,10mm according to your demand.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size 114*54*93cm
Weight 290/320kg



Packaging Details

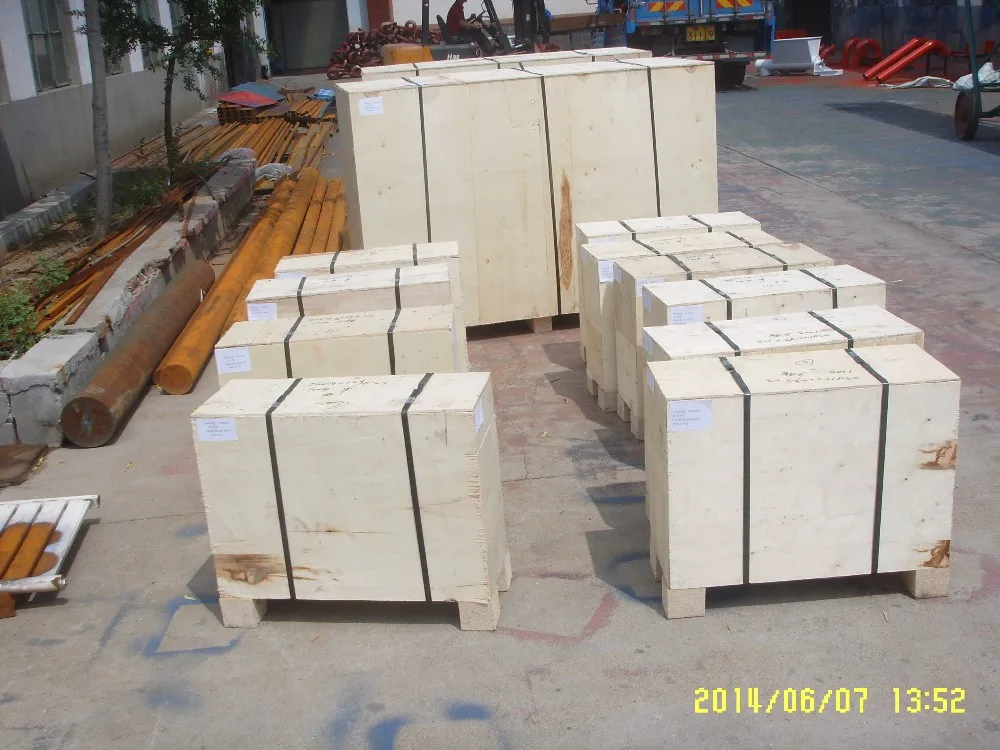

Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you.
Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)
Our Company

Laizhou Chengda Machinery Co., Ltd

Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet machine, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Please free free to contact us if you have any inquiries and we will try our best to meet your demands.


Exhibition

poultry feed processing machine to make animal food pellets adopts world-class technology to customize and produce special racks. High strength, high wear resistance, sharp teeth, uniform and delicate powder slag processing, higher starch extraction rate. The replacement of racks is quick and easy, which greatly reduces the labor intensity of labor and greatly increases the production efficiency. The separation part adopts a non-frame type three-section separation structure, which has small resistance and is more energy-efficient.
poultry feed processing machine to make animal food pellets main functions:
For the extraction of potato starch, automatic fresh potato feed, crushing, separation, slagging, pulping. is also suitable for sweet potato, sweet potato, hawthorn, kudzu, plantain, and cassava.
advantages:
1: The smashing part is the first to use thorn bar type, discarding the manual sprint method in the past.
2: The lifespan of steel piercing teeth is twice the life of the previous piercing teeth, and can be replaced in ten minutes after wear.
3: The separation section uses a thick 40cm diameter separation tube, the separation is more clean, and the powder extraction rate is more than 99%.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integration R&D, manufacturing, sales, and after-sales services.
