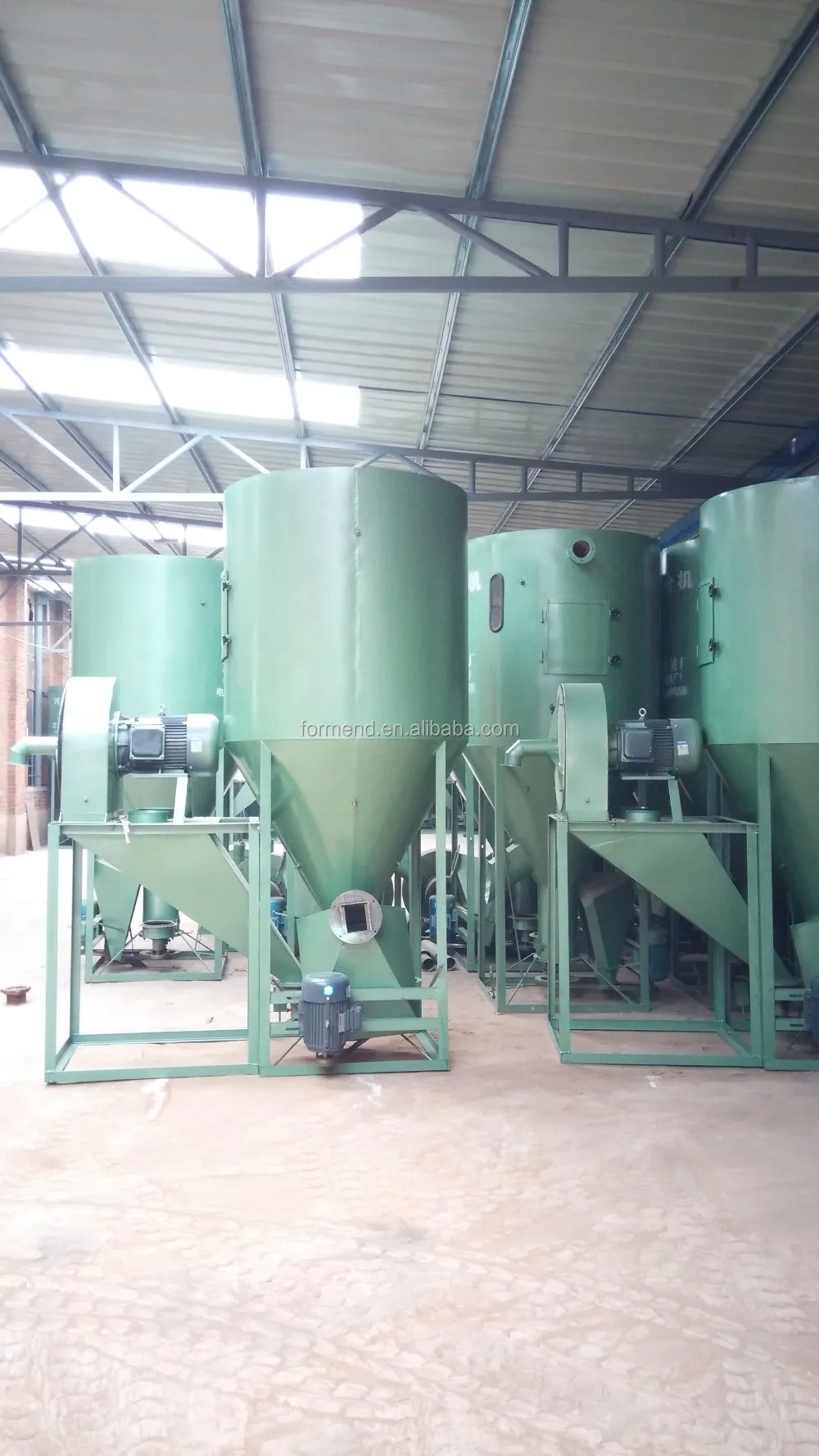

Home use soybean corn wheat grinding mixer machine/animal feed grinder for sale
The 9FQ series corn grinding machine is widely used in chicken farm, pig farm, large and small working site, etc.
This feed grinder is suitable for granule shape grains crushing working, such as cerceal, corn, wheat, barley, etc; also can be used to mill crude fiber shape materials, such as sweet potatoes, yams, and small size straws, etc.
This corn grinding machine is equipped with high carbon steel blade. The raw materials can be crushed into different size particles by changing different size mesh according to customers requirements. The durable hammer mill works with high efficiency and gains more good reputation from whole world users.
Maize/cornSpecifications of corn grinding machine:
|Models||Capacity(kg/h)||Motor power||Dimension(mm)||Machine weight(kg)|
|9FQ-320||100-200||Single phase 3kw||350*500*850||50|
|9FQ-360||200-300||Single phase 5.5kw||400*550*850||60|
|9FQ-400||400-600||Three phase 5.5/7.5kw||700*650*1050||160|
|9FQ-420||800-1000||Three phase 7.5/11kw||780*700*1100||180|
|9FQ-500||1000-1500||Three phase 11/15kw||900*850*1250||200|
|9FQ-600||1500-2000||Three phase 22kw||1350*950*1550||505|
|9FQ-700||2000-3000||Three phase 27kw||1450*1050*1650||735|
|9FQ-800||3000-5000||Three phase 30kw||1750*1350*1800||1220|
|9FQ-900||4000-8000||Three phase 37kw||1950*1550*1950||1735|
When working, the being processed materials enter the crushing chamber through feeding hopper.
Under the hit and crushing of high speed rotating parts, at the same time, the particles movement direction also be changed.
Because of the high speed rotating parts destroyed the sedimentary layers of materials, the material move under the rotor movement. In this process, particles repeatedly get the working parts and the body collision, and the particles frictions themselves, thus gradually being shattered to geometric diameter less than screen hole diameter.
Under the action of centrifugal force and air flow, shattered materials accross hole leakage entering the crushing chamber from the discharging mouth eduction.
The final materials size depends on the mesh aperture size. The customers can choose suitable screen mesh size by their feed real particles size requirements.
Made of cast iron, which is hard and wearable.
The final particles size depends on the mesh size.
The inner parts of the feed grinder machine.
Take crushing corn as example:
mesh size: 0.6mm;
mesh size: 1mm;
mesh size: 3mm.
1). Many raw materials can be crushed. Wood chips, wood shavings, bark, rice husk stalks, weeks, other crop straw and wood waste; Cereals like corn, soybean, sorghum, barley, rice, maize etc.
2). It is widely used in the processions such as flour mills, fodder factory, cultivation factory, organic fertilizer factory and so on.
3). 9FQ corn grinding machine generally works together with cyclone, fan and closed-air aspirator, which forms a feed production line
Name: feeding hopper
Original: CHINA, HENAN
Which is use to make materials into the main machine. Especially for small straw such as rice/wheat/corn straw into small fibers.
Original: China, Henan
Which delivery dust into the dust collector by this dust tube.
Name: dust collector
Original: China, Henan
Which is ued to collect the dust and small particles comes from the main machine.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.Packing & Delivery
|Size||1230 (L) * 980 (W) * 1350 (D)mm|
|The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request.|
Henan Formend Imp.& Exp. Co., Ltd, with the rapid development of international trade, established foreign trade department in May, 2010. Therefore, the Henan Formend Imp. & Exp. Co., Ltd is not just trading company, but a company of integration of industry and trade. We have the abundant technical skills and test methods, all process strictly according to ISO 9001:2008 international quality control system.
The company have grown up through the 7 years development: bettering products, attending trade shows, building platforms, forming foreign trade teams, etc. Nowadays, our business scope expand gradually, and our products not only welcomed in Chinese market, also exported to more than 50 countries and areas.Contact usRelated Products
