Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine

Product Description Our Factory Our factory occupa 30000 square meters. among of 10000 square meters modernization workshop, 4000 square meters for office . the rest...
  • Negotiation | Get Latest Price
  • 2000*1000*1000mm
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 118
  • Original Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine
  • Qiaoxing
  • CE SGS
  • SZLH320

Product Description

Product Description

Our Factory

Our factory occupa 30000 square meters. among of 10000 square meters modernization workshop, 4000 square meters for office . the rest are for workers dormitory and for garden.

Finished Machines In Factory

this is our finished machines show room , our processing workshop and finished product workshop are by separately .

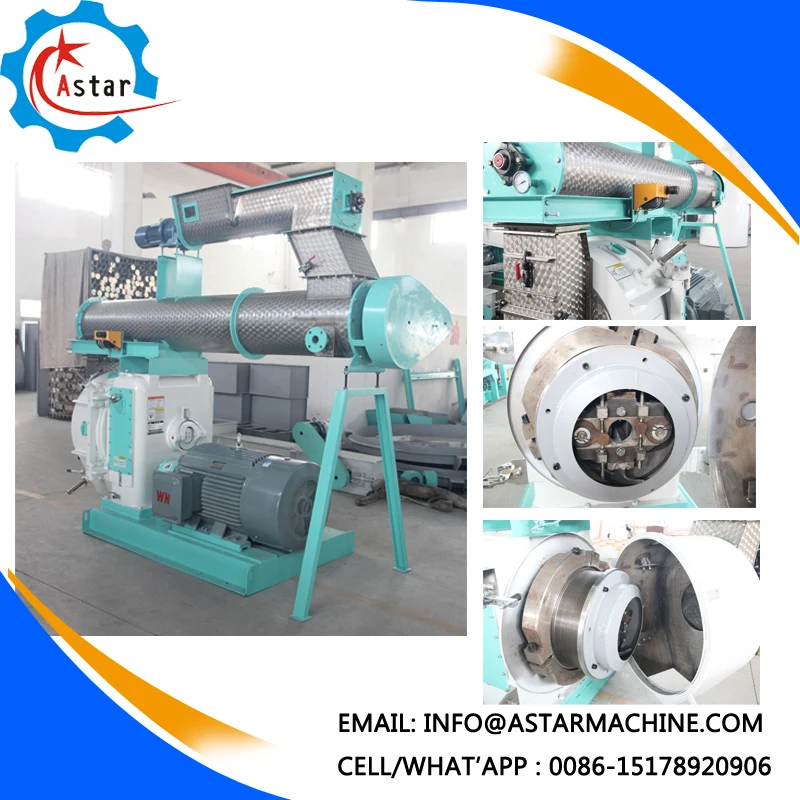

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine Description :


1.This machine widely applied product with mature technology .
2.The main driving adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4.The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5.Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6.International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner are selectable to strength the particle conditioning effect.


Product technical parameters :

SZLH32 SZLH35 SZLH40 SZLH42 SZLH508 SZLH558
SZLH678 SZLH768
1 Capacity 2-5T/H 2-8T/H 2-10T/H 3-12T/H 4-20T/H 6-22T/H 10-30T/H 12-35T/H
2 Main power 37kw 55kw 75/90kw 110kw 132/160kw 160/180/200kw 220/250kw 280/315kw
3 Power of feeder 0.55kw 1.5kw 1.5kw 1.5kw 1.5kw 2.2kw 2.2kw 2.2kw
4 Power of conditioner 2.2kw 3kw 3kw 5.5kw 7.5kw 7.5kw 11kw 15kw
5 Inner diameter of die 320mm 350mm 400mm 420mm 508mm 558mm 678mm 768mm
6 Die speed 305RPM 336RPM 307RPM 287RPM 287RPM 287RPM 287RPM 287RPM
7 Feeder speed 12-120RPM
8 Conditioner speed 350RPM
9 Pellets size Diameter 2,3,4,4.5,5,6,8,10mm
10 Rollers number 2 pcs

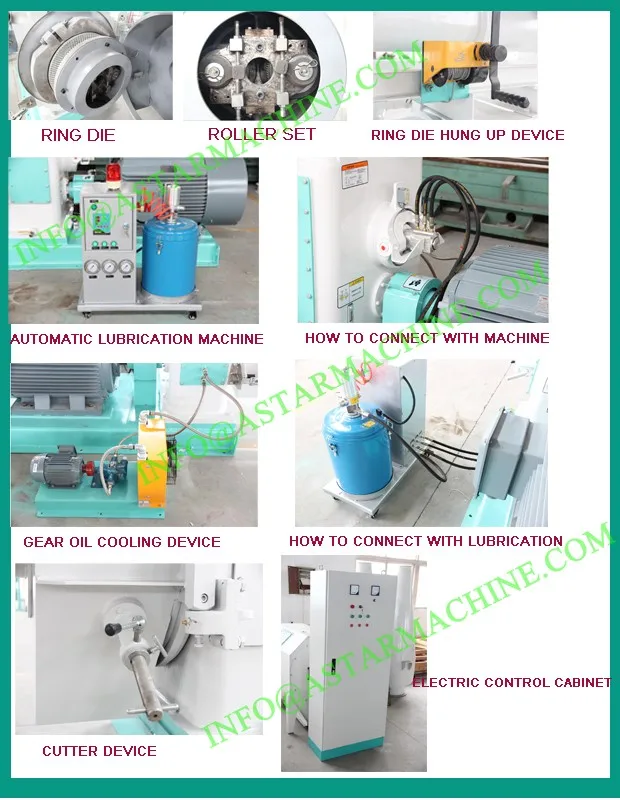

Detailed ImagesPacking & Delivery

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine packing

Successfull Case

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine in china

Poultry Feed Making Line In Bangladesh

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine in Austrilian

Chicken Feed Making Machine Manufacture

Contact Information

To Know More Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine, pls contact with us freely.


contact person: Mrs Winni

E-mail: info(at)qiaoxingmachinery.com

Cell/What's APP: 0086 15178920906

Skype: winni.duan

Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine is a food processing equipment developed, developed and produced on the basis of Jinan Joysun Machinery Co., Ltd. absorbing advanced foreign technologies. The technical performance and quality indicators of have reached the advanced level of similar international equipment. Qiaoxing Machinery 2-10mm Ring Die Animal Feed Machine From ingredients, extrusion, filling, forming, baking, spraying to finished products can be completed at one time, can produce all kinds of puffed foods, fragrant rice cakes, sandwich rolls (cakes) and crackers, cereal porridge, nutritional powder, etc. food. can produce all kinds of puffed foods, fragrant rice cakes and other sandwich rolls (cakes) and crisp biscuits, cereal porridge, nutritional powder and other foods. Using potato starch, corn starch, and flour as the main raw materials, the unique extrusion molding process is used to produce popular puffed foods with different shapes on the market. 222222 has a reasonable design, a high degree of automation, a clear control of extrusion parameters, the host is equipped with high and low pressure screws, increases the scope of use of raw materials, reduces costs, and improves product quality. The main products are spirals. Shells, round tubes, square tubes, circles, cartoon shapes, sports shapes, etc., produce products that are lifelike, crisp and crisp after being fried.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integration R&D, manufacturing, sales, and after-sales services.
