Poultry Fish Animal Fodder Machine

Poultry Fish Animal Fodder Machine

Product Description Poultry Fish Animal Fodder Machine Description: 1.According to different requirements, variety shapes of high-grade feed pellets for fish,...
  • Negotiation | Get Latest Price
  • 3100*2650*1800mm
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 159
  • Original Poultry Fish Animal Fodder Machine
  • Qiaoxing
  • CE SGS
  • ASTDGP160

Product Description

Product Description

Poultry Fish Animal Fodder Machine Description:

1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc can be produced.
2.The finished pellets can keep floating for 3-15 hours without pollution to water.
3.The floating time can be controlled by the puffing degree adjustment.
4.Floating fish feed machine can make pellet from dia.1.0mm-20mm just by changing the mold.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

Poultry Fish Animal Fodder Machine specification
Model Capacity (T/H) Main motor power ( kw) Feeder Power( kw) Diameter of screw (mm) Cutter power( kw) Dimension ( mm) Weight (kg)
ASTDGP40 ( 1phase)
0.03-0.04 3.0*2 0.4 Φ40 0.4 1500*1400*1250 280
ASTDGP40 (3 phase) 0.03-0.04 5.5 0.4 Φ40 0.4 1400*1030*730 240
ASTDGP50 0.06-0.08 11 0.4 Φ50 0.4 1470*1100*1250 320
ASTDGP60 0.12-0.15 15 0.4 φ60 0.4 1470*1120*1250 350
ASTDGP70 0.18-0.25 18.5 0.4 φ70 0.4 1650*1400*1300 580
ASTDGP80 0.3-0.35 22 0.6 φ80 0.6 1800*1450*1300 695
ASTDGP90 0.4-0.45 37 0.6 φ90 0.8 2100*1450*1350 950
ASTDGP120 0.5-0.6 55 1.1 φ120 1.5 2400*1950*1600 1700
ASTDGP135 0.7-0.8 75 1.1 φ133 2.2 2550*2050*1650 1900
ASTDGP160 1.0-1.2 90 1.5 φ155 3.0 3100*2650*1800 3200
ASTDGP200 1.8-2.0 132 2.2 φ195 3.0-4.0 3100*2850*1900 3800

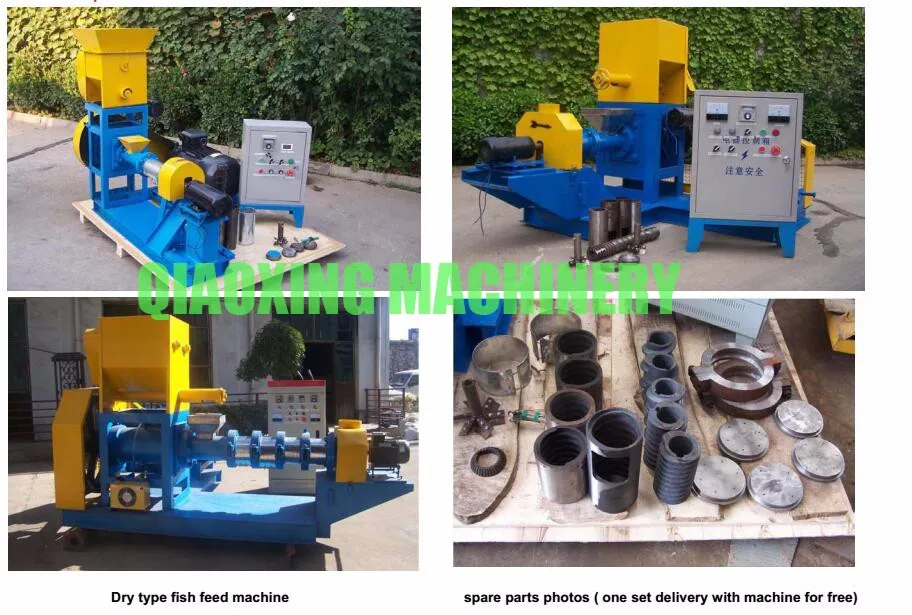

Detailed Images

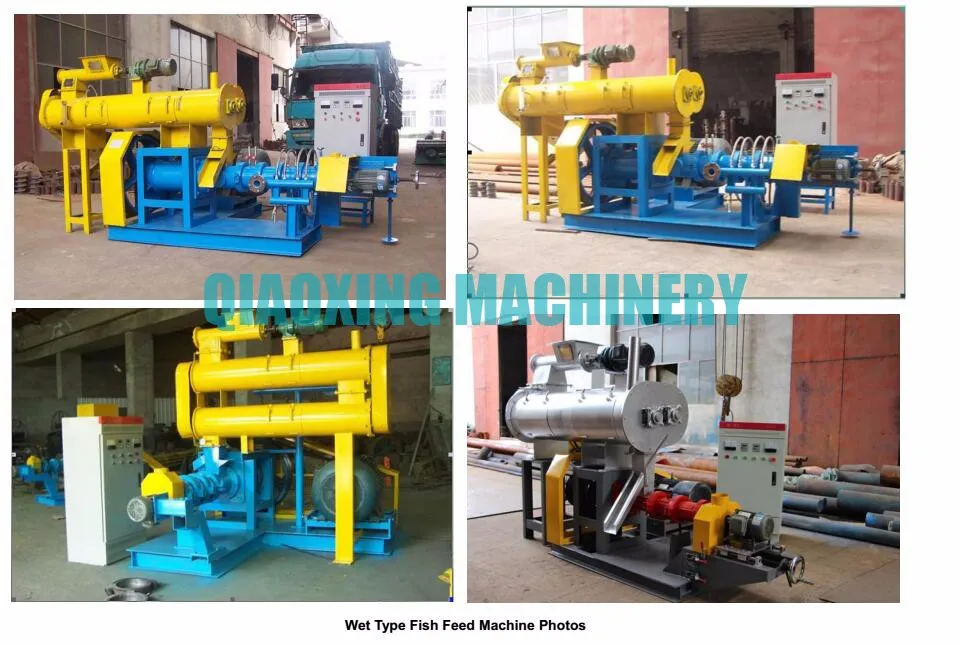

Steam Type Poultry Fish Animal Fodder Machine Specification
Model Capacity (T/H) Main motor power (kw) Feeder power( kw) Diameter of screw (mm) Cutter power ( kw) Conditioner power( kw) Dimension (mm)
ASTDSP60 0.18-0.2 15 0.4 60 0.4 0.75 1780*1250*1300
ASTDSP70 0.25-0.30 18.5 0.4 70 0.6 1.5 2460*1550*1740
ASTDSP80 0.35-0.40 22-30 1.1 80 0.75 1.5 2650*1450*1750
ASTDSP90 0.50-0.60 37 1.1 90 1.1 2.2 2600*2100*1900
ASTDSP120 0.70-0.80 55 1.1 120 1.5 2.2 3200*1950*1900
ASTDSP135 1.0-1.2 75 1.5 135 2.2 3.0 3750*1980*1800
ASTDSP160 1.8-2.0 90 2.2 160 2.2 4.0 6600*2800*2330
ASTDSP200 3.0-4.0 132 2.2 200 3.0 5.5 6600*2900*2350
Packing & Delivery

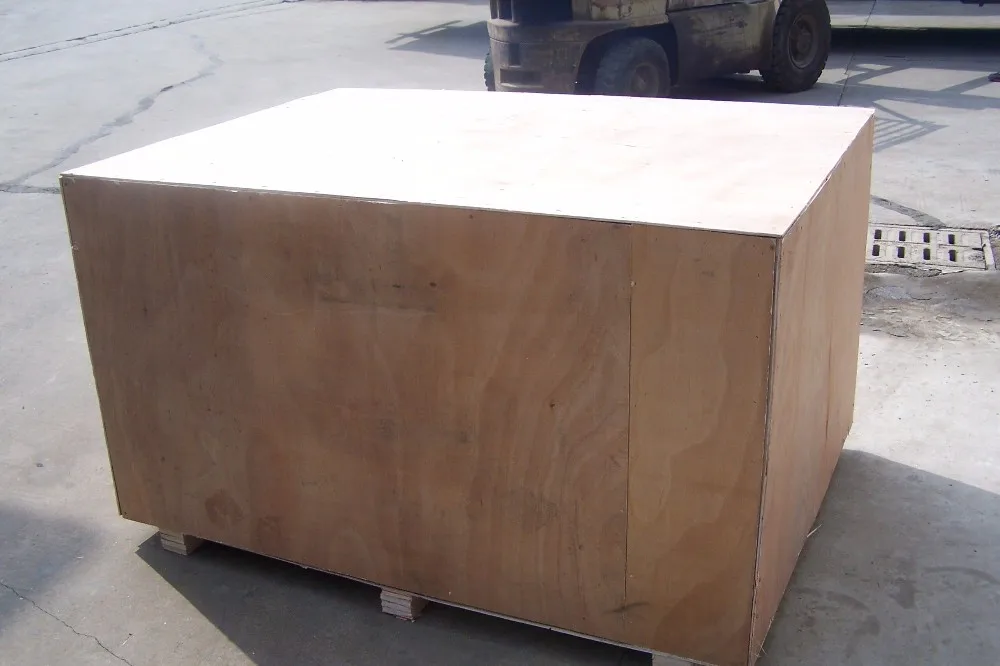

Wooden Case Packing

use plywood wooden case packing , more strong

Poultry Fish Animal Fodder Machine single machine

easy operation, low cost.

Name Poultry Fish Animal Fodder Machine
Consist Hammer Mill
Mixer
Feed Extruder
Dryer
Cooler
Packing Machine
Capacity range we have below capacitty range for your choice100-150kg/h ;200-150kg/h;300-350kg/h400-450kg/h;500-600kg/h;700-800kg/h1000-1500kg/h;1800-2000kg/h;2000-3000kg/h

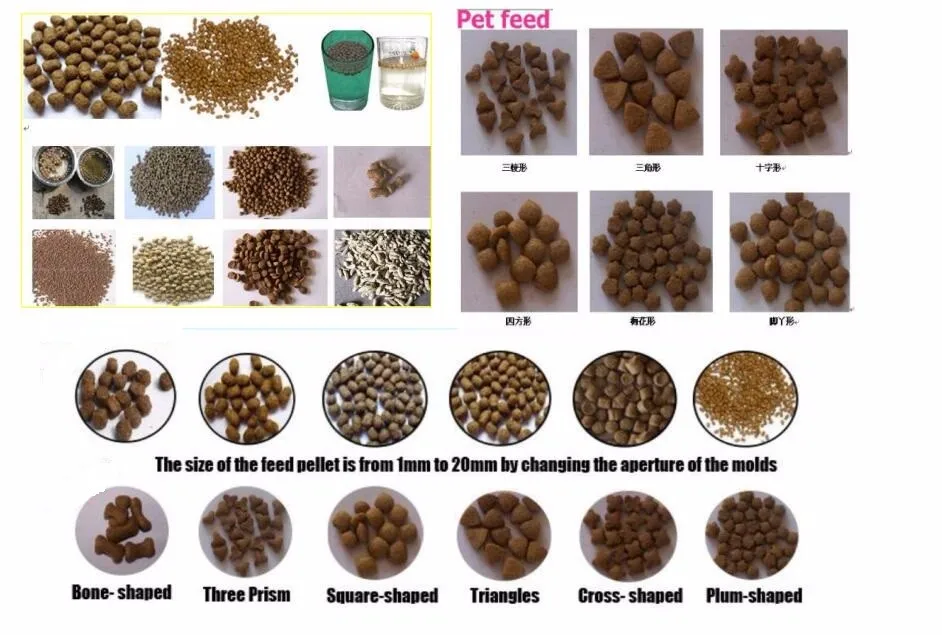

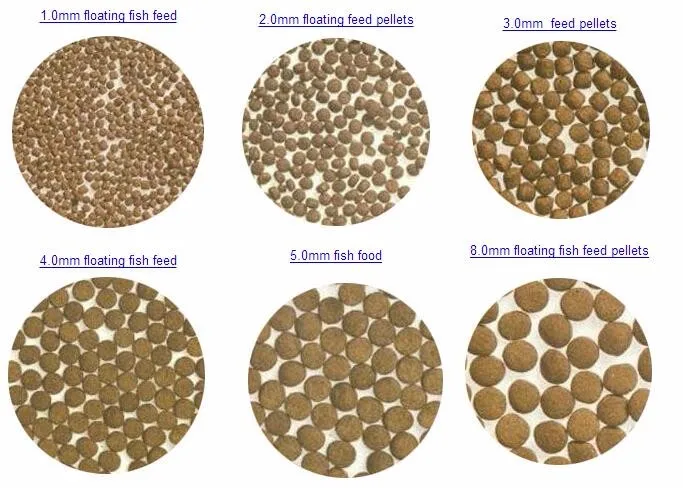

Final Feed Sample


Final Feed Sample

floating time : 24 hours for fish feed, it also can make pet feed
