1).This instant artificial rice food processing equipment is highly automatic and energy saving.
2).It can use broken rice ,millet,brown rice ,buckwheat ,corn flour and other cereal as raw materials.After strengthen mixed with a variety of vitamins, protein and minerals ,then by the twin screw extruder to puff and cook,it will be shape various rice again.
3).The usage is same to natural rice ,but more sample and convenient than before.It not only is nutritional ,but also adapts to the fast rhythm of modern life, PLC control panel ,easy to operate and maintein.
3.Raw materials: adopts broken rice rice, corn, millet, wheat, oats, buckwheat, bean, starch as main ingredient, and some other vitamin and mineral as part of ingredient.
4.Capacity: find attached form.
5.Flow chart: Mixing system---Extrusion system----Drying system----Flavoring system---Packing system.
6.Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
7.Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
8.Parameters of 2018 China hot sale stainless steel reinforced rice extruder machine:
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machine, with us your money in safe, with us your business in safe.

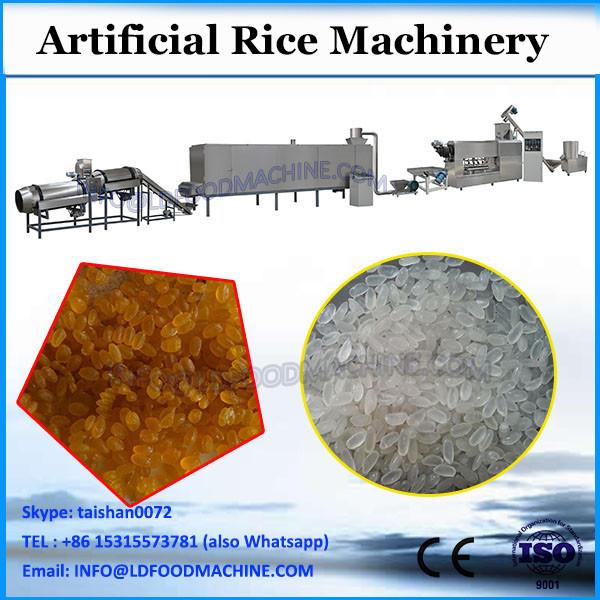

This is our artificial rice production line in our factory.
The inside structure of our twin screw extruder.
Our multi-layer gas dryer, we also have electric/steam/diesel dryer for your selection.
Our artificial rice mould.Detailed Images
Motor Power: 4KW
Throughput: 30kg per loading (5-6 minutes per loading)
mix raw powder material with water
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range: 1.5~2.5M
barrel diameter: Φ160mm
Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution.
Main Motor Power:45KW
Cutting motor: 1.5kw
Extruder diameter:Φ70 mm
Extrude and cook raw material into different size and shapes
Screw material is 38CrMoAl with nitriding treatment, the hardness is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different shapes product.
There are Five layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heating.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.
Motor Power:1 KW
Cool the food after flavoring ,make the food suitable for packing.
Stainless steel material
Have fan and baffle,better cooling and no leakage.
98.8% Response Rate
99.8% Response Rate
99.8% Response Rate
1. Raw materials of : Potato Starch, Corn Starch , Wheat Flour, Cassava Starch etc.
2. Products made by 2018 China hot sale stainless steel reinforced rice extruder machine : By changing the shaping machine, can produce , waved chips, potato chips, shrimp chips and so on. screw,shell, bulges extruded pellet chips processing line,fried snacks food machine
3. Capacity of 2018 China hot sale stainless steel reinforced rice extruder machine : 80-100kg/h,250-260kg/h. screw,shell, bulges extruded pellet chips processing line,fried snacks food
4. Flow Chart of : Mixing —Extrusion —Shaping —Drying —Frying —Flavoring
5. Voltage of 2018 China hot sale stainless steel reinforced rice extruder machine: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries. Fried snacks food machine
6. Machines Materials of : All the machines are made by food grade stainless steel.
