dog pet chewing treats food plant processing line machine

dog pet chewing treats food plant processing line machine

Product Description 1.The parameter of the dog pet chewing treats food plant processing line machine : Model DLG100 (Single color)...
  • Negotiation | Get Latest Price
  • 25000*1500*2200
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 161
  • Original dog pet chewing treats food plant processing line machine
  • SBN
  • CE ISO9001
  • DLG100

Product Description

Product Description

1.The parameter of the dog pet chewing treats food plant processing line machine:

Model DLG100 (Single color) DLG100×2 (Double color)
Install Power 50KW 110KW
Consumption Powe 35KW 77KW
Output 120-150KG/H 220-250KG/H
Dimension 19000×1300×2200mm 22000×3000×2200mm

2.The brief introduction of dog pet chewing treats food plant processing line machine:

1).The Pet chews injection molding machine can use the granular material made by the extruder to produce the pet chews. Through high temperature and high pressure, the pet chews molding machine will mold different shapes.Such as bone, toothbrush, Mace, hedgehog, crocodile, dog, pork ears, barrel and so on.The pet chews is a kind of pet toys or pet food. There are many shapes of the pet chews, such as bone, ball, ring, stick, shoes and particle.The pet chews are high-protein and nutritional meat for dogs to eat.Due to the dogs have the hobby to gnaw the bone,the shape is designed to meet the dogs’ need to play.The products are beneficial for pets with the features of: strengthening teeth, cleaning mouth and teeth, reducing the disease etc.
2). Raw Materials: Starch, Wheat Flour, Food Additives.

3). Products: Pet Food, Like Dog, Cat, Fish, Bird Food etc. with Different Shapes and Tastes by Changing the Dies and Formulations.

3.Capacity: 120kg/h,220kg/h

4.Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

5.Pet Chews Machinery follow chart:
Mixer---Screw conveyor--- Single screw extruder---Cooling machine---Cutting machine--- Hoister---Drying oven

6. Voltage: Three phases: 380V/50HZ; Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
7. Machines Materials: All the machines are made by food grade stainless steel.

Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.

Single screw extruder in our factory

Multi-layer oven in our factory

Cutter in our factory

Detailed Images

Name: mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 25kg per loading (5-6 minutes per loading)
Functions:
mix raw powder material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: twin screw extruder

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material(1.5mm) and advanced surface spraying handle.

Name: dryer(we also have gas/diesel/steam dryer for your selection)

Dimension(m): 5.4×1.3×1.8
Motor power:0.75kw
Heating powder:45 kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Five layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel

Name: hositer

Dimension(m): 2×0.6×2.2
Power: 0.37KW
Function:
To send the dog chews to dryer

Customer come to our factory to inspect the machines:

CertificationsOur Service

Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services:
1.Oversea install and debug the equipment.
2.Train the first-line operator.
3.Provide the basic formula.

Packing & Delivery
Packaging
Size Size2500×1200×1800MM
Weight 1.5 T



Packaging Details
The normal package is wooden box(Size: 2500×1200×1800MM). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.pet chews machine.
Shipment
Size 40FT high container
Weight 6000-10000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

Bread crumb making machine

98.8% Response Rate

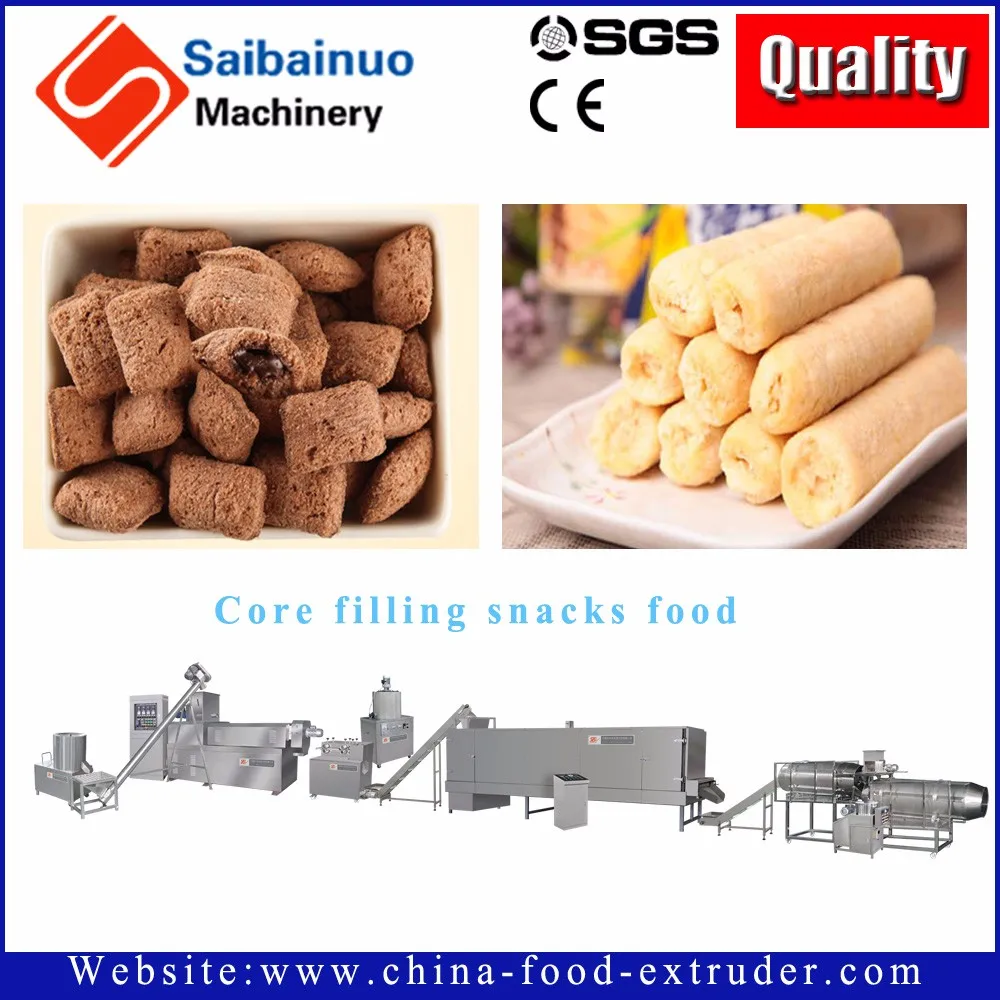

core filling snacks machine

97.9% Response Rate

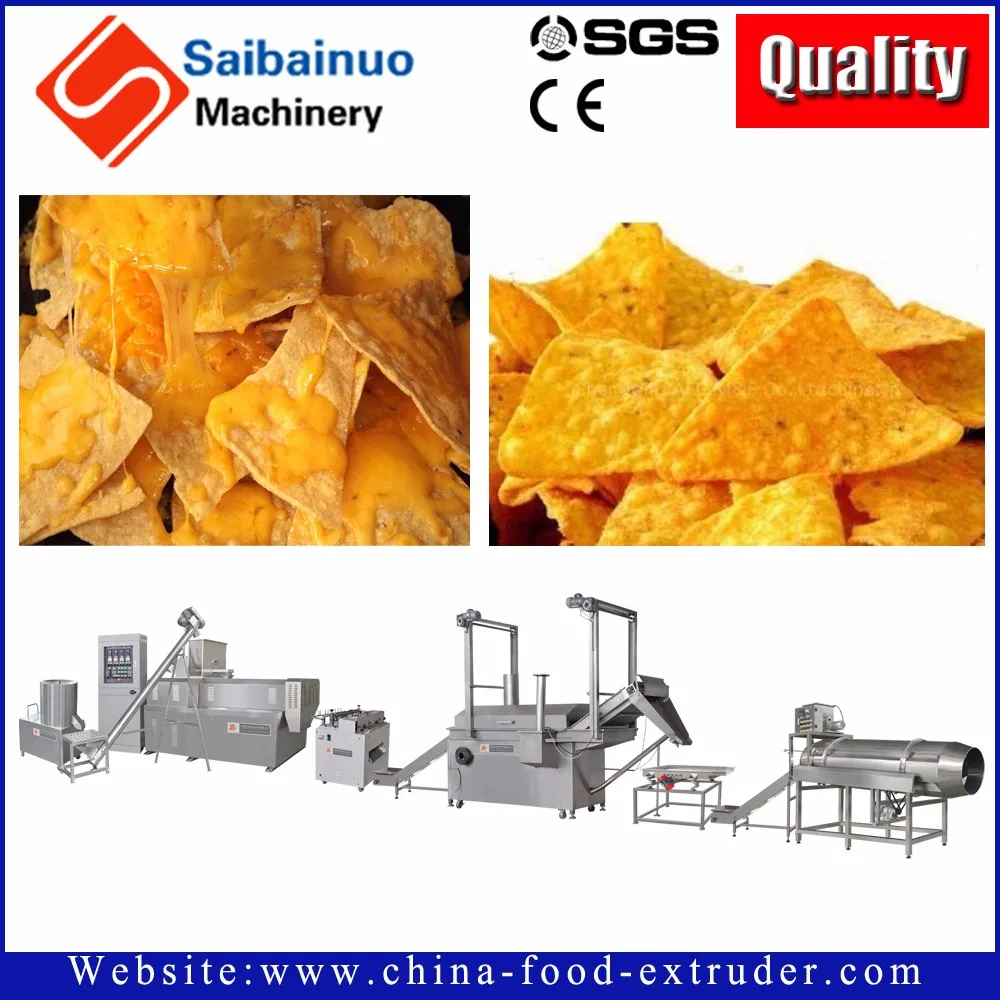

doritos making machine
