Hot selling low energy consumption Dog chewing food making machine

Hot selling low energy consumption Dog chewing food making machine

Product Description 1.The brief introduction of Dog chewing food making machine: a.Dog chews food is made of many kind of different materials with scientific...
  • Negotiation | Get Latest Price
  • 25000*1500*2200
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 33
  • Original Hot selling low energy consumption Dog chewing food making machine
  • SBN
  • CE ISO9001
  • DLG100

Product Description

Product Description

1.The brief introduction of Dog chewing food making machine:

a.Dog chews food is made of many kind of different materials with scientific configuration and extruded form extru-der, it can be made into many kind of shapes such as stick bone etc. This kind of food not only provide nutrition to dogs, like potein fat vitamin ect, but also satify the dog nature hobby, strong teeth, clean mouth and teeth, avoided disease. The products can be in many shapes, like twist, double colors, ore-filled, and so on.

2.Materials: adopts corn flour, bone meal, fish meal as raw materials

3.Capacity: 120kg/h,220kg/h

4.Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

5.Pet Chews Machinery follow chart:
Mixer---Screw conveyor--- Single screw extruder---Cooling machine---Cutting machine--- Hoister---Drying oven

6. Voltage: Three phases: 380V/50HZ; Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
7. Machines Materials: All the machines are made by food grade stainless steel.

8.The parameter of the dog chewing making machine:
Model DLG100 (Single color) DLG100×2 (Double color)
Install Power 50KW 110KW
Consumption Powe 35KW 77KW
Output 120-150KG/H 220-250KG/H
Dimension 19000×1300×2200mm 22000×3000×2200mm

Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.

The inside structure of our twin screw extruder.

Our multi-layer dryer.

Detailed Images

Name: mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 25kg per loading (5-6 minutes per loading)
Functions:
mix raw powder material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: twin screw extruder

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Features:
stainless steel material(1.5mm) and advanced surface spraying handle.

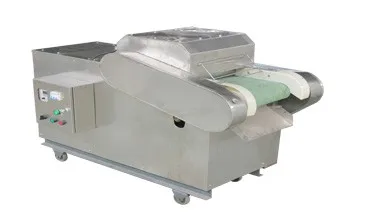

Name: Cutting machine

Dimension(m): 1.1×0.7×1
Power: 1.0KW
Function:
To cut the dog chews into different length.

Name: hositer

Dimension(m): 2×0.6×2.2
Power: 0.37KW
Function:
To send the dog chews to dryer

Name: dryer

Dimension(m): 5.4×1.3×1.8
Motor power:0.75kw
Heating powder:45 kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Five layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.

CertificationsOur Service

Before sale services:
1.Provide the free consultation of the equipment.
2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services:
1.Oversea install and debug the equipment.
2.Train the first-line operator.
3.Provide the basic formula.

Packing & Delivery
Packaging
Size Size2500×1200×1800MM
Weight 1.5 T



Packaging Details
The normal package is wooden box(Size: 2500×1200×1800MM). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.pet chews machine.
Shipment
Size 40FT high container
Weight 6000-10000kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
