Corn flake is one kind of crisp foods, it has the advantages of good rehydration performance, silky mouth feel and aroma taste. Corn flake adopts corn powder as raw material; sugar, vitamins, mineral as additive. Make flake by adequately extruding, cooking, shaping and drying. The finished production is nourishing, which can replace traditional breakfast cereal food perfectly.
3. Flow chart of breakfast cereals corn flakes extruder making machine:
Mixing system---Extrusion system---Flaking system---Drying system--- High-temperature baking---Sugar Spraying system ---Drying system---- Packing system.
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
5. Machines Materials: All the machines are made by stainless steel
6.Specification of the breakfast cereals corn flakes extruder making machine:
|Install Power|| 140KW||160KW||190KW|
|Consumption Power|| 90KW|| 120KW||133KW|
|Dimension||20000×1200×2200MM|| 23000X1500X2200MM|| 25000×3500×4000MM|
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.

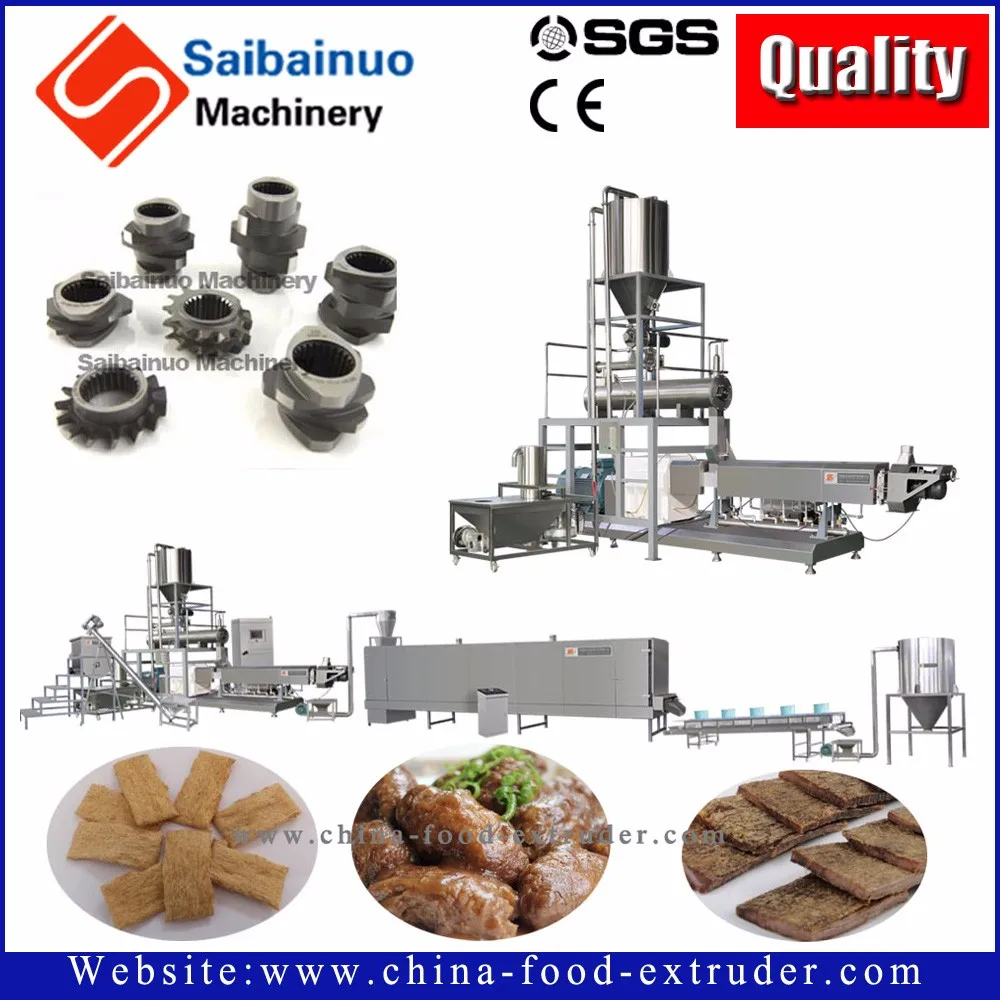

The inside structure of our twin screw extruder.
Our flaking machine.
Our multi-layer dryer.Detailed Images
Motor Power: 3KW
Throughput: 20kg per loading (5-6 minutes per loading)
Mix powder raw material with water
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
stainless steel material
Total power: 37kw
Main Motor Power:22KW
Cutting motor: 1.5kw
Extruder diameter:Φ65 mm
Extrude and cook raw material into different size and shapes
Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different moulds to produce different
Heating powder: 27kw
There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel.
Motor Power: 1.5KW
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Stainless steel material.
There are five fans on the top of the belt, they blow the food to make the temperature reduce to suitable for packing
Stainless steel material.
