1).Corn flakes machine are a kind of breakfast with high nutritional value. Breakfast Cereal machine usually use corn powder and other cereals as main raw material, through mixing, extruding, baking, coating, drying and cooling, to get crispy breakfast cereals. It always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc.
2.raw material: corn powder,can be made into various shapes,a healthy choice for your breakfast with milk.

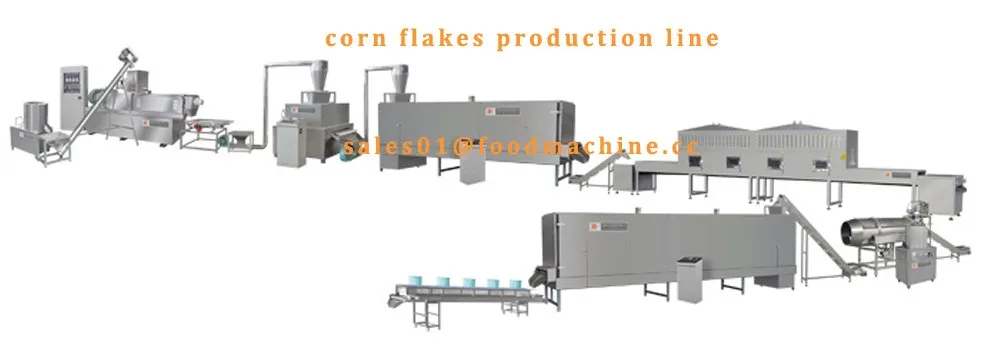

Mixing system---Extrusion system---Cooling system---Flaking system---Drying system---Toasted system---Sugar Spraying system---Drying system--- Packing system.
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
5.Machines Materials: All the machines are made by stainless steel.
6.Specification of the professional breakfast cereals corn flakes production line:
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, quality is our culture, so with us your money in safe, your business in safe.
The inside structure of our twin screw extruder.
Our multi-layer dryer.
The flaking machine.Detailed Images
Motor Power: 3KW
Throughput: 20kg per loading (5-6 minutes per loading)
Mix powder raw material with water
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
stainless steel material
Total power: 37kw
Main Motor Power:22KW
Cutting motor: 1.5kw
Extruder diameter:Φ65 mm
Extrude and cook raw material into different size and shapes
Screw material is 38CrMoAl with nitriding treatment, the hardness is 60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different moulds to produce different Shapes product.
Motor Power: 1.1KW

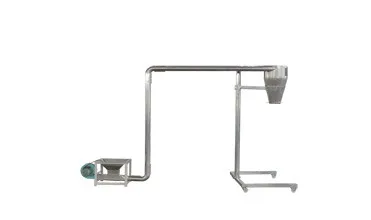

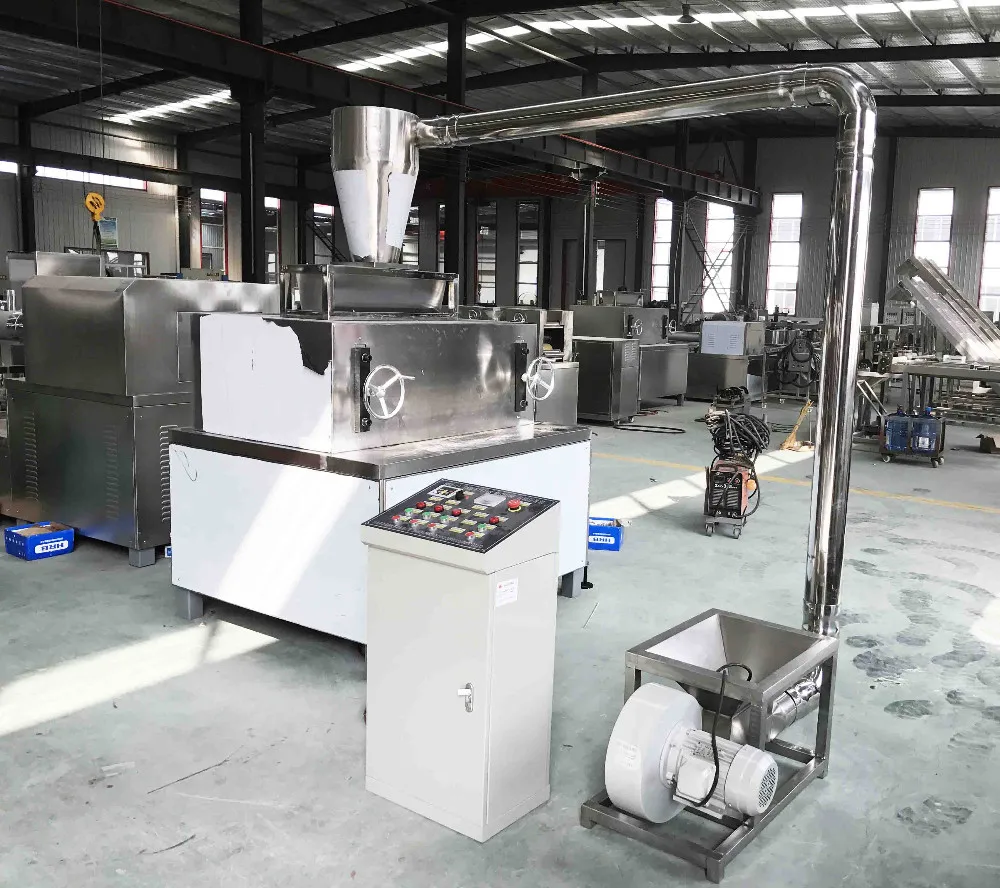

1.conveys the food by the wind-force from the blower.
2.suitable for long distance conveying
Low energy-consumption, high efficiency.
It use high pressure blower to send food, It is more effective than normal pressure blower.
Heating powder: 27kw
There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel
elevator conveys the food to the feed-charge port of roller.
No leaking material and pollution
PVC conveyor belt
suitable for the long distance conveying
can adjust the height by holder stand
Motor Power: 1.5KW
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Stainless steel material
There are five fans on the top of the belt, they blow the food to make the temperature reduce to suitable for packing
Stainless steel material
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
Packaging & Shipping:
1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
