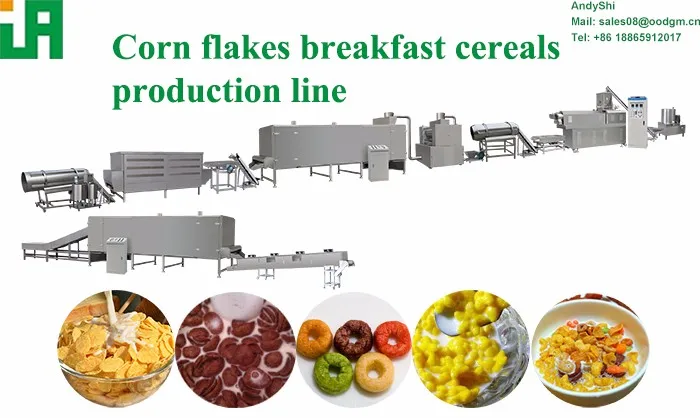

Cereal corn flakes making machine is a very popular production line. It takes corn flour as main raw material, it is very crispy after extruding, granulating,flaking,frying, seasoning. The outstanding characteristic of flakes is containing abundant compound carbohydrate and dietary fiber. We can also add some trace elements and minerals.
| SPECIFICATIONS FOR small capacity corn flakes making machine 70-120kg/h|
|Name||Model||Output(KG/H)||Installed power(KW)||Power consumption(KW)||Dimension(MM)|
|Twin screw extruder||TSE65-|||||100-150||35||20-25||2600*870*1950|

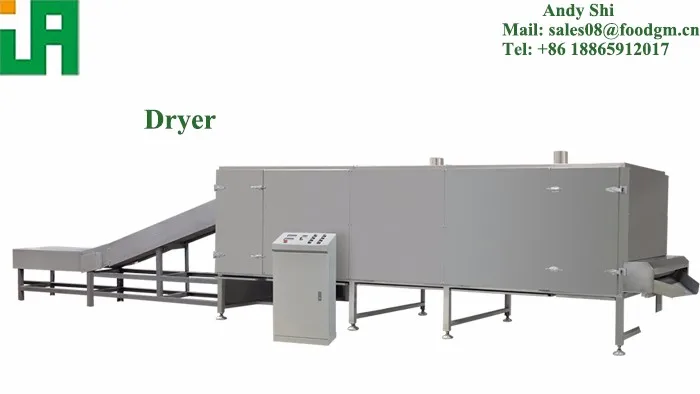

|Drum type dryer||100-200||4.75||4||2420*780*1420|
|Flaking machine(double staffs)||YP-|||100-250||7.5||7||1200*900*1800|
|High temperature inflated oven||KL||100-250||78||70||4000*800*2400|
|Hoister and flavoring machine||ZTTW||100-250||1.12||1||2300*600*1700|
1. We use the flaking material which is food grade stainless steel, the machine body is harmless; pressure distribution evenly to ensure the quality of tablet.
2. High-temperature oven can make the second expansion of semi-finished products, so that the product looks more beautiful shape, taste more crisp and refreshing.
3. After the flavoring machine, we set up a slopewit the oven instand of hoister. It will prevent the product stick from hoister, because the product full with sugar or oil.
4. Main body material: stainless steel
5. Screws quantity: 2
6. Screws material: 38CrMoAl
7. Rotating speed: adjustable
8. Temperature: adjustable
9. Self-cleaning function
10. Floor area: 220 square meters
11. Operator quantity: 2
12. Output: 100-150kg/h
Name: High temperature inflated oven
High-temperature oven mainlymake the second expansion of semi-finished products
Slopewit the oven will prevent the product stick from holster, because the product full with sugar or oil.

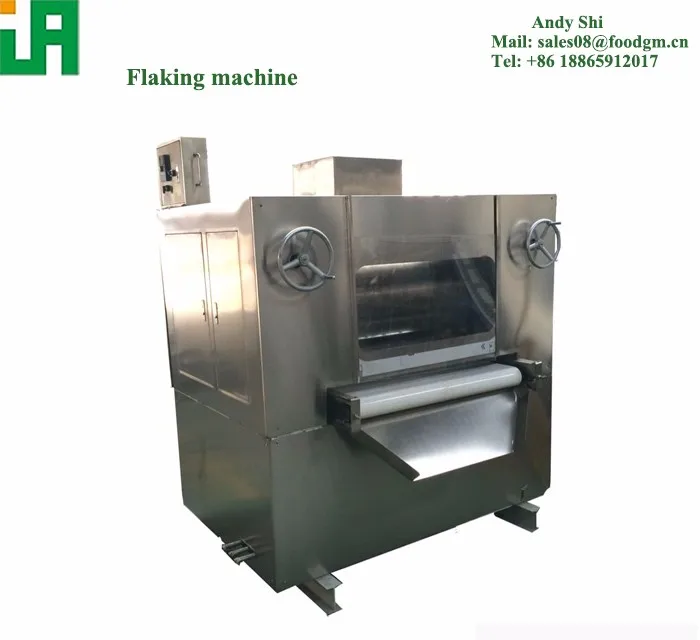

Name: Flaking machine
It mainly pressure distribution evenly to ensure the quality of tablet

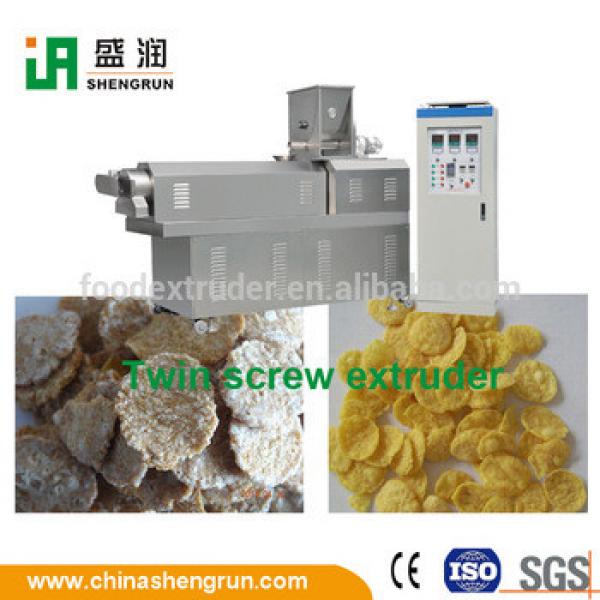

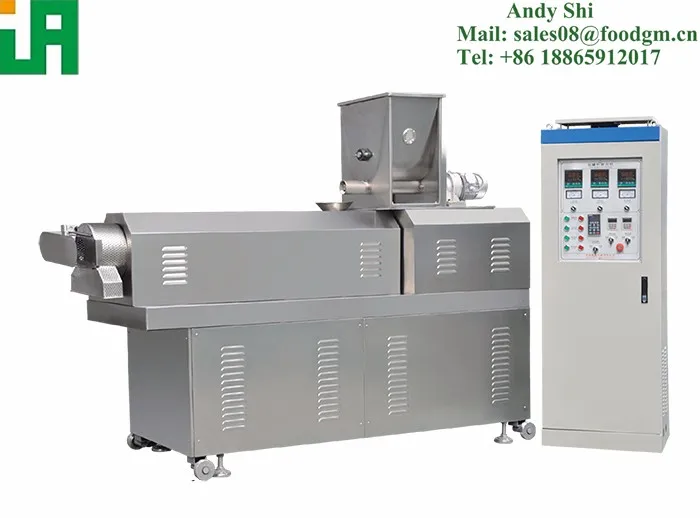

Name: Twin screw extruder
(1) Conditioner (option for small capacity lines, necessary for big capacity lines), used for pre-conditioning raw materials. (2) Twin-screw extruder, used for extruding and shaping.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* The warranty period is one year.
.Packing & Delivery
| 1. Inside package is plastic film, outside package is wooden or plywood cases, which is seaworthy.|
2. We can supply fumigation package and certificate.
small capacity corn flakes making machine 70-120kg/h adopts world-class technology to customize and produce special racks. High strength, high wear resistance, sharp teeth, uniform and delicate powder slag processing, higher starch extraction rate. The replacement of racks is quick and easy, which greatly reduces the labor intensity of labor and greatly increases the production efficiency. The separation part adopts a non-frame type three-section separation structure, which has small resistance and is more energy-efficient.
small capacity corn flakes making machine 70-120kg/h main functions:
For the extraction of potato starch, automatic fresh potato feed, crushing, separation, slagging, pulping. is also suitable for sweet potato, sweet potato, hawthorn, kudzu, plantain, and cassava.
1: The smashing part is the first to use thorn bar type, discarding the manual sprint method in the past.
2: The lifespan of steel piercing teeth is twice the life of the previous piercing teeth, and can be replaced in ten minutes after wear.
3: The separation section uses a thick 40cm diameter separation tube, the separation is more clean, and the powder extraction rate is more than 99%.
