Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production

Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production

Product Description Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production Product details...
  • Negotiation | Get Latest Price
  • 24000*1800*2000
  • Within 5 working days
  • paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
  • 105
  • Original Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers mach
  • [标签:pinpai]
  • CE
  • SX65-IIIA

Product Description

Product Description

Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production

Product details

Processing TypesExtrusion
Output100-150 KG/H
featureenergy saving,full automatic
qualitymaterial carefully selected
finished products shapebar,ball,round bar,square and rectangle
raw materialcorn, rice, broomcorn,wheat

1. Corn flakes breakfast cereal machine description:

Breakfast cereal manufactured by twin-screw extruder or single screw extruder through the treatment of flakes of grain, served with milk and marshmallows, were a very popular food among the families.

2. Raw materials:

adopts corn flour as raw materials.

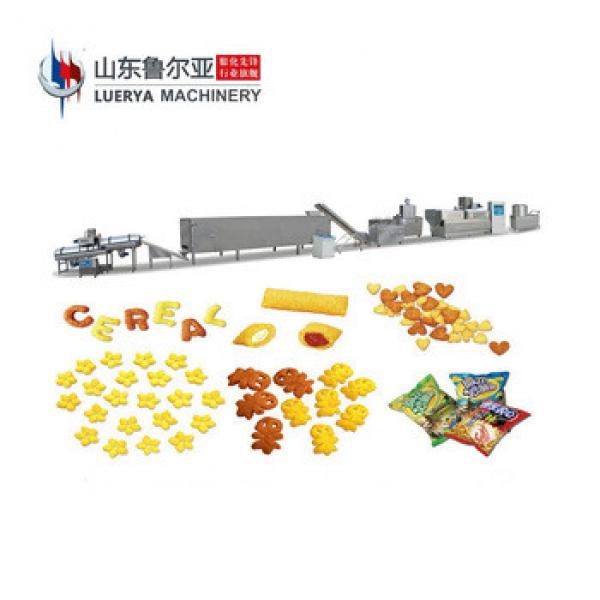

3. Breakfast cereal corn flakes processing line Products:

Mixing system---Extrusion system----Cooling system—Flaking system--Drying system—Toasted system---Sugar Spraying system ---Drying system---- Packing system

This line can be used to produce snacks, cereals by adjusting the moulds from extruder

4. Corn flakes machine Capacity:

120-150kg/h, 200-250kg/h, 350-500kg/h

5. Voltage in China:

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

6. Machines Materials:

All the machines are made by stainless steel.

7. The biggest advantage:

the screw can self-clean automatically

How does corn flake production line work?

  • After preparation work, controlled quantities of raw materials and liquids are premixed and then dosed before being fed continuously and uniformly into the extrusion platform.

  • The mixture rawmaterial is then cooked at the right temperatures using the thermo-mechanical energy provided by the twin-screw extruder.

  • Texturing and shaping of expanded products are determined by the final design of the insert, while the expansion ratio is influenced by temperature of the extrudate, the types of ingredients used and moisture content.

  • The shaped products are then conveyed directly to the sugar coating system.

  • The coated cereals are dried and cooled down to ambiant temperature to retain crispness, as defined in the recipe.

  • The products can also be filled when the unit has a co-extrusion system.

Technical parameter

Model Installed powder Powder consumption Throughput Dimension
SX65IIIA 130KW 90KW 120-150kg/h 28x1.2x2.0m
SX85-II 180KW 140KW 300-400kg/h 30X1.5X2.0m


Related Products

Automatic ard/Soft Biscuit Making Machine

Modified/Pregelatinized Starch Processing Line For Industry

Semi/fully-automatic potato chips making machine / production line.

High capacity 300-400kg/h Corn flakes/Breakfast cereals processing line with CE certificate

Company Profile

Exhibition

Produce

Package

Contact Us

Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production adopts world-class technology to customize and produce special racks. High strength, high wear resistance, sharp teeth, uniform and delicate powder slag processing, higher starch extraction rate. The replacement of racks is quick and easy, which greatly reduces the labor intensity of labor and greatly increases the production efficiency. The separation part adopts a non-frame type three-section separation structure, which has small resistance and is more energy-efficient.
Eco-Friendly crisp cereal breakfast cornflakes machine cornflex extruder manufacturers machinery production main functions:
For the extraction of potato starch, automatic fresh potato feed, crushing, separation, slagging, pulping. is also suitable for sweet potato, sweet potato, hawthorn, kudzu, plantain, and cassava.
advantages:
1: The smashing part is the first to use thorn bar type, discarding the manual sprint method in the past.
2: The lifespan of steel piercing teeth is twice the life of the previous piercing teeth, and can be replaced in ten minutes after wear.
3: The separation section uses a thick 40cm diameter separation tube, the separation is more clean, and the powder extraction rate is more than 99%.
Jinan Joysun Machinery Co., Ltd. is a modern food machinery and equipment manufacturing enterprise integration R&D, manufacturing, sales, and after-sales services.
