Product Description

Product Descriptionwidth: 750px; height: 461.538px; margin-left: 0px; margin-top: 0px;

width: 750px; height: 209.25px; margin-left: 0px; margin-top: 0px;

1.Introduction of the Automatic Industrial Core Filling Automatic Industrial Core Filling Automatic Industrial Core Filling Snack Food Process Line machine Process Line machine Process Line machine:

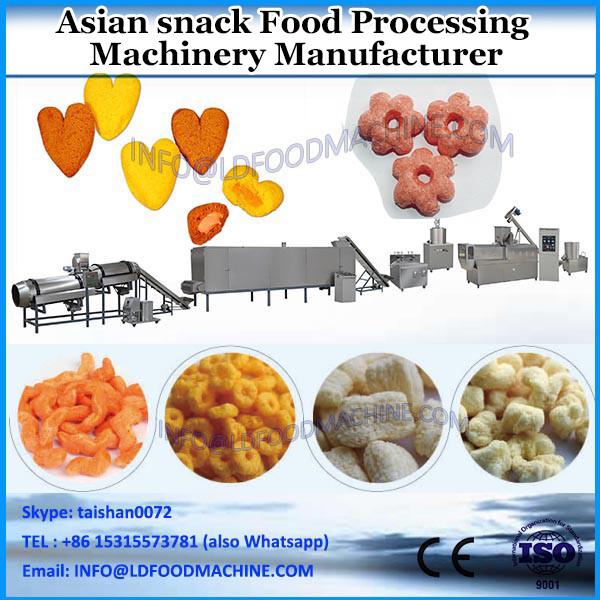

1.Core filling extrusion snacks processing line can use corn, rice and other grain as main materials, with chocolate and cheese as stuffing materials, which can be mixed with yolk, milk powder, and gingili sauce.We can feed the stuffing into extrusion food just before it is extruded from extruder. This kind of core-filling food tastes crispy and delicious, such as core-filling pillow, tube and wafer.

2.The flow chart: Mixer --screw conveyor --twin screw extruder--core filler--muti-function shaper-- hoister-- roasting oven --flavoring machine --packing machine.

3. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

4.Machines Materials: All the machines are made by stainless steel.

5.Specification of the Automatic Industrial Core Filling Automatic Industrial Core Filling Automatic Industrial Core Filling Snack Food Process Line machine Process Line machine Process Line machine:

Model SLG65 SLG70
Install Power 65KW 110KW
Consumption Power 42KW 77KW
Output 120-150KG/H 220-260KG/H
Dimension 19000×1300×2200M 22000×1300×2200M

We are the biggest and most professional food machine manufacturer, quality is our culture, so with us your money in safe, your business in safe~!!

width: 750px; height: 617.884px; margin-left: 0px; margin-top: 0px;

The inside structure of our twin screw extruder.

width: 750px; height: 400px; margin-left: 0px; margin-top: 0px;

Our multi-layer dryer.

width: 750px; height: 417.75px; margin-left: 0px; margin-top: 0px;Detailed Imageswidth: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: high speed mixer

Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2. new handle-opened design of discharge holes,no material leak
3.High speed can mix material better than other slow mixer.

Name: screw conveyor

Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter: Φ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feeder machine of Extruder without leaking, dust and pollution; feeding speed is even and stable.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: twin screw extruder

Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.

Name: cutting machine

Dimension(m): 1.2×0.6×1.2
Motor Power: 1.5KW
Functions:
1.shaping the product
2.Cut the product
3.The speed of The shaping system and the cutting system can be Adjusted,according to adjust the speed we can get different length product.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 247.333px; margin-left: 0px; margin-top: 0px;

Name: core filling machine

Dimension(m): 0.8×0.6×1.5
Motor Power: 0.37KW
Heating power: 2KW
Functions:
To fill chocolate , peanuts butter ,cheese and so on into the snacks

Name: elevator

Dimension(m): 2.0×0.5×2.0
Motor Power:0.37KW
Function:
elevator conveys the food from the discharge-port of cutting
machine to the feed-charge port of Oven.
Features:
No leaking material and pollution
PVC conveyor belt
suitable for the long distance conveying.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: dryer(we also have gas/diesel/steam dryer for your selection)

Dimension(m): 5.4×1.3×1.8
Heating Power:27kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Three layers inside,each layer is 5 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heat tube.
It has automatic temperature Control system.
The belt and the cover are all stainless steel

Name: elevator

Dimension(m): 2.0×0.5×1.5
Motor Power:0.37KW
Function:
elevator conveys the food from the discharge-port of oven to the feed-charge port of roller.
Features:
No leaking material and pollution
PVC conveyor belt
suitable for the long distance conveying.

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: flavoring line

Dimension(m): 3.8×0.8×1.8
Motor Power: 1.5K
Function:
Scatter the powder seasoning on the food, The roller will mix the fat and seasoning powder evenly. Make food nice taste.
Feature:
Stainless steel material(1.5mm thickness)

Name: oil sprayer

Dimension(m):1.1×0.5×1.3
Motor Power:0.37 KW
Heating power:2KW
Function:
make the liquid oil, sugar and the solid fat be heated, then spray them on the Surface of food by the oil pump.
Feature:
It has heating system and spraying system

width: 371px; height: 220px; margin-left: 0px; margin-top: 0px; width: 371px; height: 220px; margin-left: 0px; margin-top: 0px;

Name: cooling conveyor

Dimension(m): 5.0×0.7×1.1
Motor Power:1 KW
Function:
Cool the pet food after flavoring ,make the pet food suitable for packing.
Feature:
Stainless steel material
Have fan and baffle,better cooling and no leakage

Certificationswidth: 245px; height: 320px; margin-top: 0px; margin-left: 0px; width: 245px; height: 320px; margin-top: 0px; margin-left: 0px; width: 245px; height: 320px; margin-top: 0px; margin-left: 0px;Our Servicewidth: 750px; height: 765.152px; margin-left: 0px; margin-top: 0px;

Pre-sale service:
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3.According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.

Packing & Deliverywidth: 750px; height: 798.387096774194px; margin-left: 0px; margin-top: 0px;

Packaging & Shipping:
1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
